3077728

SMA30PELQ5 4-PIN M12

Manufacturer's No: SMA30PELQ5     Manufacturer: Turck Banner
SMA30PELQ5 4-PIN M12

Availability On Request

£235.91
  • Photoelectric Sensor in Opposed Mode (Emitter)
  • Operating Voltage: 12-240 VAC / 10-30 VDC
  • Maximum Range: 150,000 mm
  • Connector: 7/8"
  • 3-pin configuration
  • Protection Class: IP67
  • Ambient Temperature: -40°C to +70°C
  • Modulation Frequency: A
  • Requires receivers with matching frequency
  • Dual operating voltage: 10-30 VDC or 12-240 VAC


Product

Manufacturer Material ID -
SMA30PELQ5
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

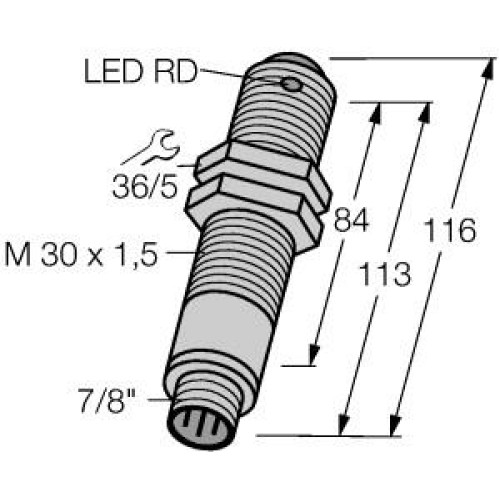

Diameter sensor -
30 Millimetre
Housing material -
Plastic
Length of sensor -
116 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
150000 Millimetre
Rated switching distance -
150000 Millimetre
Type of electric connection -
Connector M12
Type of light -
Infrared light
Wavelength of the sensor -
950 Nanometre
Turck Banner

Availability On Request

£235.91
