3027562

SM30 Series: Emitter - Frequency C Stainless Stl, Range: 150 m, Input: 10-30 V dc /12-240 V ac, Output: Not Applicable, 3-pin Mini

Manufacturer's No: SMA30SELQDC     Manufacturer: Turck Banner
SM30 Series: Emitter - Frequency C Stainless Stl, Range: 150 m, Input: 10-30 V dc /12-240 V ac, Output: Not Applicable, 3-pin Mini Integral QD

Availability On Request

£309.41
  • Photoelectric Sensor in Opposed Mode
  • Operating Voltage: 12-240 VAC / 10-30 VDC
  • Maximum Range: 150,000 mm
  • Connector: 7/8", 3-pin
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70 °C
  • Modulation Frequency: C
  • Requires receivers with the same frequency
  • Dual operating voltage: 10-30 VDC or 12-240 VAC


Product

Manufacturer Material ID -
SMA30SELQDC
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

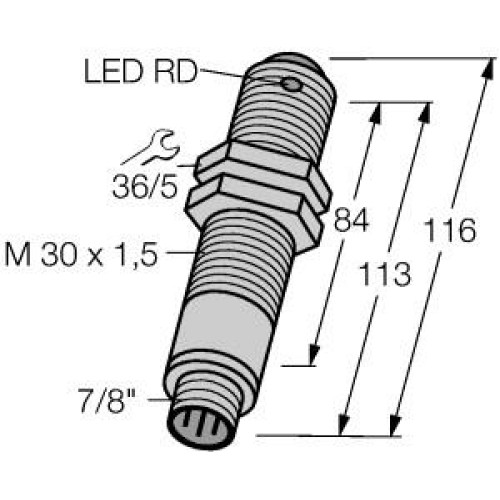

Diameter sensor -
30 Millimetre
Housing material -
Metal
Length of sensor -
116 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
150000 Millimetre
Rated switching distance -
150000 Millimetre
Setting procedure -
Other
Type of electric connection -
Connector 7/8 inch
Type of light -
Infrared light
Wavelength of the sensor -
950 Nanometre
Turck Banner

Availability On Request

£309.41
