3026059

MINI-BEAM: Emitter, Range: 30 m, Input: 24-240 V ac, Output: Not Applicable, 2 m (6.5 ft) Cable

Manufacturer's No: SMA31EL     Manufacturer: Turck Banner
MINI-BEAM: Emitter, Range: 30 m, Input: 24-240 V ac, Output: Not Applicable, 2 m (6.5 ft) Cable

Availability On Request

£107.98
  • Type: Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 24-240 VAC
  • Max. Range: 30000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • Operating Voltage: 24-240 VDC


Product

Manufacturer Material ID -
SMA31EL
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

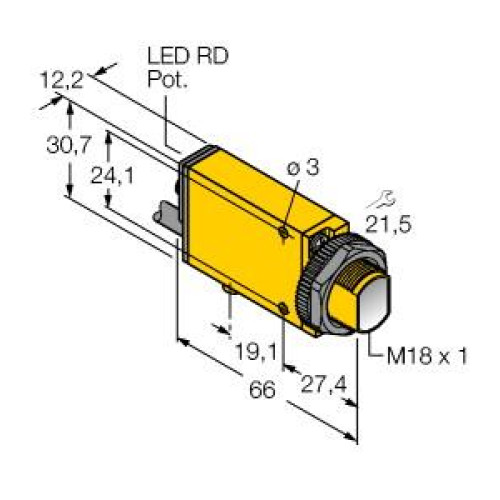

Diameter sensor -
18 Millimetre
Height of sensor -
30.7 Millimetre
Housing material -
Plastic
Length of sensor -
66 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
30000 Millimetre
Rated switching distance -
30000 Millimetre
Reaction time -
2 Millisecond
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
880 Nanometre
Width sensor -
12.2 Millimetre
Turck Banner

Availability On Request

£107.98
