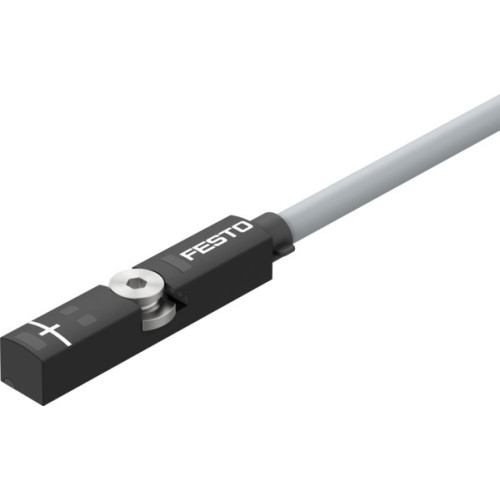

SMT-8M-A-PS-24V-E-2,5-OE Proximity sensor

Manufacturer's No: SMT-8M-A-PS-24V-E-2,5-OE     Manufacturer: Festo
SMT-8M-A-PS-24V-E-2,5-OE Proximity sensor

Availability On Request

£31.55
  • Proximity sensor SMT-8M-A-PS-24V-E-2,5-OE
  • Insertable in T-slot from above
  • Contactless operation at 24 V DC
  • LED indicator
  • 3-wire N/O contact, PNP
  • Cable length: 2.5 m, suitable for energy chains/robots
  • Design: For T-slot, based on EN 60947-5-2 standard
  • Oil resistant, RoHS-compliant, halogen-free
  • Measured variable: Position
  • Measuring principle: Magneto-resistive

Read more

  • Temperature range: -40°C to 85°C
  • Repetition accuracy: 0.2 mm
  • Switching output: PNP, N/O contact
  • Switch-on time: 1.3 ms, switch-off time: 7.3 ms
  • Max. switching frequency: 130 Hz
  • Max. output current: 100 mA, max. switching capacity: 2.8 W
  • Voltage drop: 1.5 V, short circuit current rating: yes
  • Overload protection available, reverse polarity protection
  • Cable sheath color: Grey, material: TPE-U(PUR), insulating sheath: PP
  • Housing color: Black, material: PA-reinforced, high-alloy stainless steel
  • Degree of protection: IP65, IP68, IP69K
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Cleanroom class: Element installed statically, no meaningful evaluation possible


Product

Manufacturer Material ID -
SMT-8M-A-PS-24V-E-2,5-OE
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
TR
UNSPSC -
41111926
Festo

Availability On Request

£31.55
