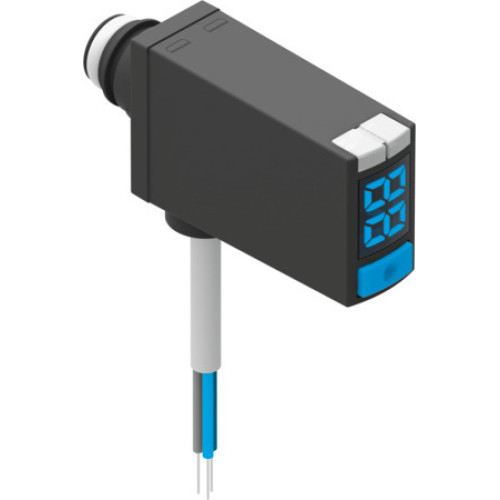

SPAE-V1R-PC10-PNLK-2.5K Pressure sensor

Manufacturer's No: SPAE-V1R-PC10-PNLK-2.5K     Manufacturer: Festo
SPAE-V1R-PC10-PNLK-2.5K Pressure sensor

Availability Back Order

£90.50
  • Pressure sensor model: SPAE-V1R-PC10-PNLK-2.5K
  • Measured variable: Relative pressure
  • Measurement method: Piezoresistive pressure sensor with display
  • Pressure measuring range: 0 MPA to -0.1 MPA, 0 BAR to -1 BAR, 0 PSI to -14.5 PSI
  • Overload pressure: 0.5 MPA, 5 BAR, 72.5 PSI
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])
  • Media temperature range: 0°C to 50°C
  • Ambient temperature range: 0°C to 50°C
  • Resolution ADC: 10 BIT
  • Accuracy: ±1.5% FS

Read more

  • Repetition accuracy: ±0.3% FS
  • Temperature coefficient: ±0.05% FS/K
  • Switching output: PNP/NPN, switchable
  • Switching function: Freely programmable with N/C and N/O contact options
  • Switch-on/off time: 1 MS
  • Max. output current: 100 MA
  • Display range: 0 to 99
  • Protocol: IO-Link® V 1.1
  • IO-Link features: Smart sensor profile, Binary data channel, Process data variable, Identification, Diagnostics, Teach channel
  • Communication mode: COM2 (38.4 kBaud)
  • Operational voltage range: 18 V to 30 V
  • Electrical connection: 3-wire cable with open end, 2.5 M length
  • Mounting type: Pin-type connection, optional position
  • Pneumatic connection: Cartridge 10 mm
  • Material: PA-reinforced housing, FPM and NBR sealing rings
  • Display: LED indicator with 2-digit displayable units in %FS
  • Switching status indication: Yellow LED
  • Setting options: IO-Link®, Teach-in, Via display and keys
  • Protection: PIN code tamper protection
  • Degree of protection: IP40
  • Cleanroom class: Class 4 according to ISO 14644-1


Product

Manufacturer Material ID -
SPAE-V1R-PC10-PNLK-2.5K
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
90262020
Country of Origin -
HU
UNSPSC -
30102206
