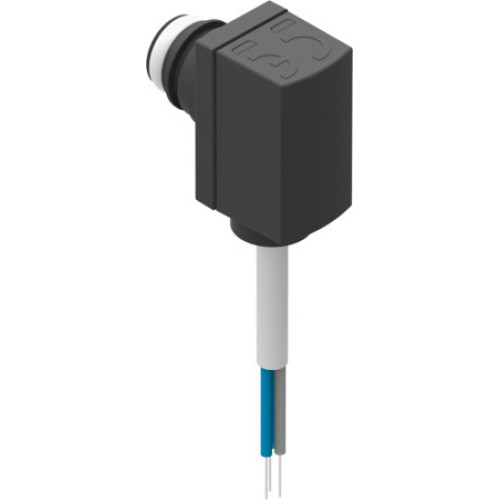

SPTE-B2R-PC10-B-2.5K Pressure transmitter

Manufacturer's No: SPTE-B2R-PC10-B-2.5K     Manufacturer: Festo
SPTE-B2R-PC10-B-2.5K Pressure transmitter

Availability On Request

£48.73
  • Pressure transmitter model: SPTE-B2R-PC10-B-2.5K
  • Measured variable: Relative pressure
  • Measurement method: Piezoresistive pressure sensor
  • Pressure measuring range: -0.1 MPa to 0.1 MPa, -1 bar to 1 bar, -14.5 psi to 14.5 psi
  • Overload pressure: 0.5 MPa, 5 bar, 72.5 psi
  • Operating medium: Compressed air (ISO 8573-1:2010 [7:4:4])
  • Media temperature range: 0°C to 50°C
  • Ambient temperature range: 0°C to 50°C
  • Accuracy: ±3% FS
  • Repetition accuracy: ±0.3% FS

Read more

  • Temperature coefficient: ±0.05% FS/K
  • Analogue output: 1-5 V
  • Rise time: 1 ms
  • Min. load resistance for voltage output: 15 k?
  • Operational voltage range: 10 V to 30 V
  • Reverse polarity protection
  • Electrical connection: 3-wire, cable, open end
  • Cable length: 2.5 m
  • Mounting: Pin-type connection, optional mounting position
  • Pneumatic connection: Cartridge 10 mm
  • Product weight: 35 g
  • Material housing: PA-reinforced
  • Material sealing ring: FPM, NBR
  • Degree of protection: IP40
  • Corrosion resistance class: 2 - Moderate corrosion stress
  • Cleanroom class: Class 4 according to ISO 14644-1
  • RoHS-compliant
  • Approvals: RCM trademark, c UL us - Recognized (OL), CE mark for EU EMC and RoHS Directives, UKCA marking
  • Certificate issuing authority: UL E322346
  • Note: Lubricated operation possible, suitable for Li-ion battery production


Product

Manufacturer Material ID -
SPTE-B2R-PC10-B-2.5K
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
90262020
Country of Origin -
HU
UNSPSC -
30102206
