SRN12840K

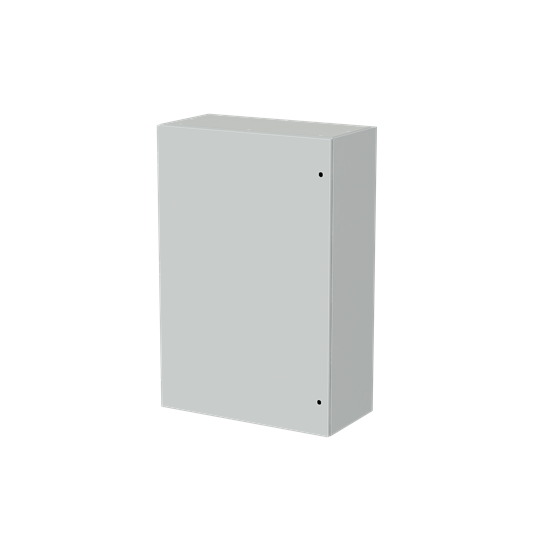

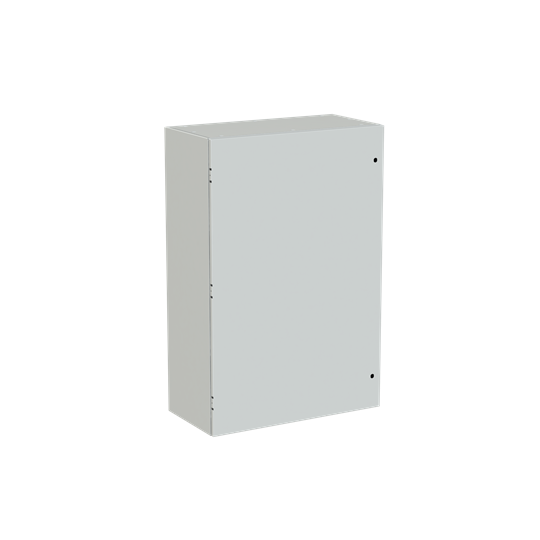

SR2-SRN12840K Metallic enclosure SR2

Manufacturer's No: SRN12840K     Manufacturer: ABB
SR2-SRN12840K Metallic enclosure SR2

Availability On Request

POA
  • Model: SR2-SRN12840K
  • Enclosure Type: Metallic
  • Dimensions: 1200mm x 800mm x 400mm
  • Color: RAL 7035
  • Features: Black door and plate
  • Unique Design: Suitable for industrial use


Product

Manufacturer Material ID -
SRN12840K
Net Weight -
50.50kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Circuit integrity -
None
Colour -
Grey
Cover model -
None
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
4X
Depth -
400 Millimetre
Height -
1200 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK10
Internal depth -
400 Millimetre
Mounting method -
Surface mounted
Number of openings for flange plates -
2
Plate thickness cabinet -
1.2 Millimetre
Plate thickness door/cover -
1.2 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
400 Millimetre
Surface protection -
Powder coated
Type of covering -
Door
Type of door -
Single
Width -
800 Millimetre
With lock -
With mounting plate -
