SRN3415K

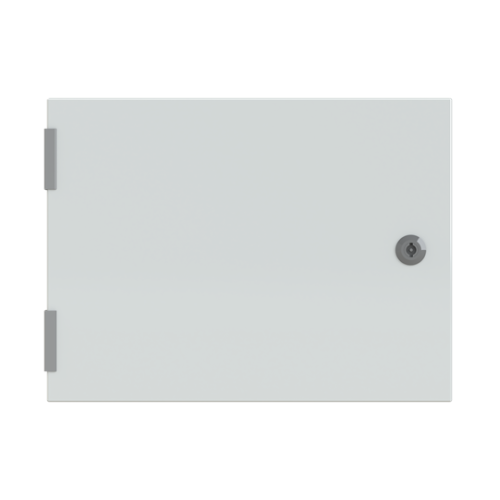

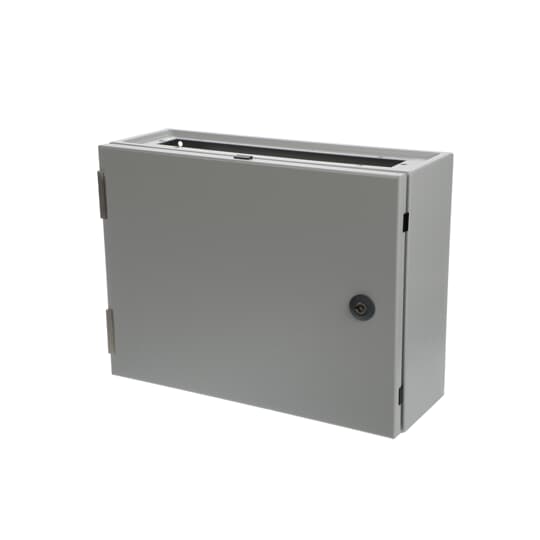

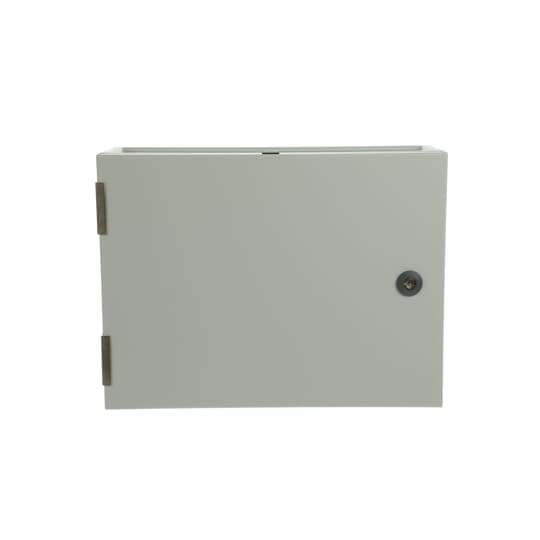

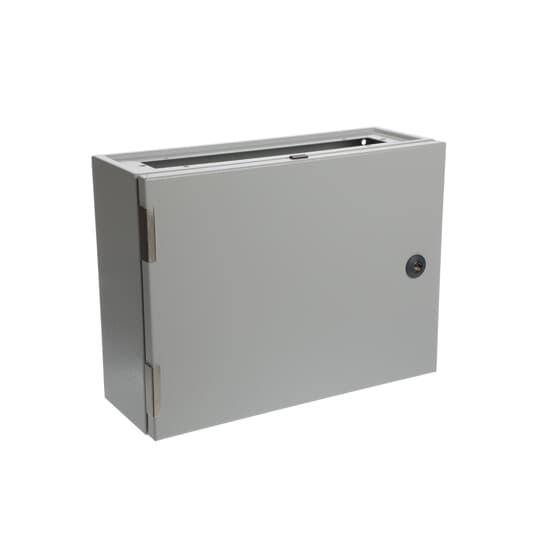

SR2-SRN3415K Metallic enclosure SR2

Manufacturer's No: SRN3415K     Manufacturer: ABB
SR2-SRN3415K Metallic enclosure SR2

Availability On Request

£110.96
  • Product: SR2-SRN3415K
  • Enclosure type: Metallic
  • Dimensions: 300mm x 400mm x 150mm (H x W x D)
  • Features: Blind door + back plate


Product

Manufacturer Material ID -
SRN3415K
Net Weight -
7.50kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Number of rows -
-
Number of conduit inlets -
-
Width in number of modular spacings -
-
Number of modules -
-
Nominal current (In) -
- Ampere
RAL-number -
7035
Built-in depth -
82 Millimetre
Type of cover -
Door
Material housing -
Steel
Impact strength -
IK10
Degree of protection (IP) -
IP65
Circuit integrity -
None
Colour -
Grey
Cover model -
None
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
3R
Depth -
150 Millimetre
Height -
300 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK10
Internal depth -
133.5 Millimetre
Mounting method -
Surface mounted
Number of openings for flange plates -
2
Plate thickness cabinet -
1.2 Millimetre
Plate thickness door/cover -
1.2 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
82 Millimetre
Surface protection -
Powder coated
Type of covering -
Door
Type of door -
Single
Width -
400 Millimetre
With lock -
With mounting plate -
ABB

Availability On Request

£110.96
