SRN5425K

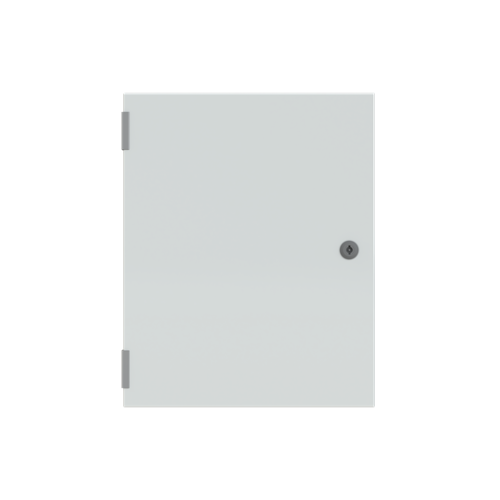

SR2-SRN5425K Metallic enclosure SR2

Manufacturer's No: SRN5425K     Manufacturer: ABB
SR2-SRN5425K Metallic enclosure SR2

Availability On Request

£157.86
  • Metallic enclosure SR2
  • Dimensions: 500mm x 400mm x 250mm (HxWxD)
  • Includes blind door and back plate


Product

Manufacturer Material ID -
SRN5425K
Net Weight -
12.70kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Number of conduit inlets -
-
Nominal current (In) -
- Ampere
RAL-number -
7035
Built-in depth -
182 Millimetre
Type of cover -
Door
Material housing -
Steel
Impact strength -
IK10
Degree of protection (IP) -
IP65
Circuit integrity -
None
Colour -
Grey
Cover model -
None
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
3R
Depth -
250 Millimetre
Height -
500 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK10
Internal depth -
233.5 Millimetre
Mounting method -
Surface mounted
Number of modules -
28
Number of openings for flange plates -
2
Number of rows -
2
Plate thickness cabinet -
1.2 Millimetre
Plate thickness door/cover -
1.2 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
182 Millimetre
Surface protection -
Powder coated
Type of covering -
Door
Type of door -
Single
Width -
400 Millimetre
Width in number of modular spacings -
14
With lock -
With mounting plate -
