SRN6630K

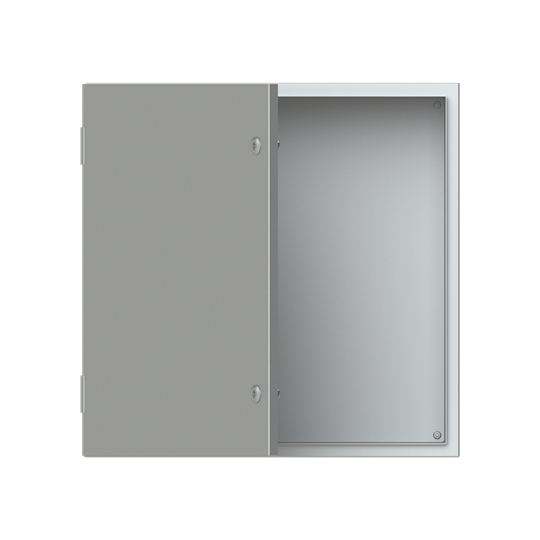

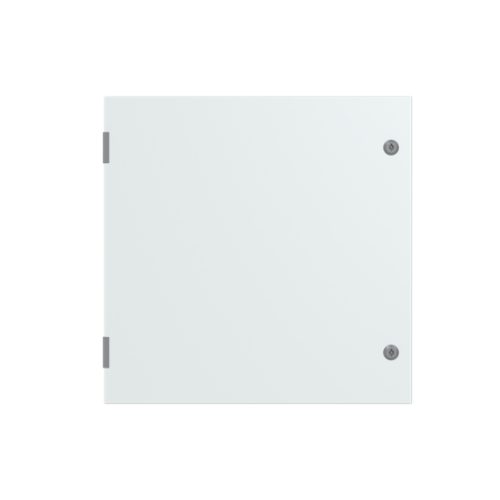

SR2-SRN6630K Metallic enclosure SR2

Manufacturer's No: SRN6630K     Manufacturer: ABB
SR2-SRN6630K Metallic enclosure SR2

Availability Back Order

£330.30
  • Metallic enclosure SR2
  • Size: 600 x 600 x 300 mm
  • Color: 7035
  • Includes backplate and door


Product

Manufacturer Material ID -
SRN6630K
Net Weight -
25.00kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Circuit integrity -
None
Colour -
Grey
Cover model -
None
Degree of protection (IP rating) -
IP66
Degree of protection (NEMA) -
4X
Depth -
300 Millimetre
Height -
600 Millimetre
Housing material -
Stainless steel
Impact resistance (IK rating) -
IK10
Internal depth -
283.5 Millimetre
Mounting method -
Surface mounted
Number of openings for flange plates -
2
Plate thickness cabinet -
1.2 Millimetre
Plate thickness door/cover -
1.2 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
232 Millimetre
Suitable for outdoor use -
Type of covering -
Door
Type of door -
Single
Width -
600 Millimetre
With lock -
With mounting plate -
