SRN8630K

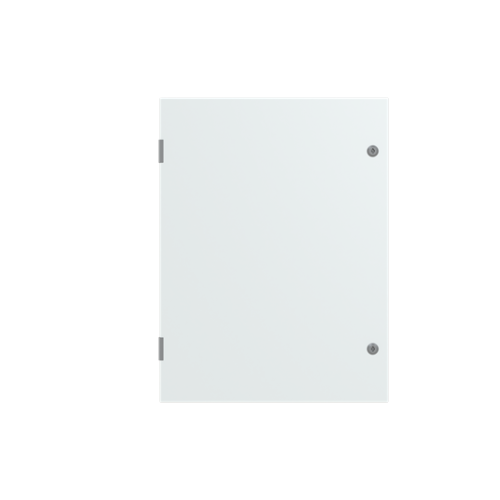

SR2-SRN8630K Metallic enclosure SR2

Manufacturer's No: SRN8630K     Manufacturer: ABB
SR2-SRN8630K Metallic enclosure SR2

Availability On Request

£338.70
  • Metallic enclosure SR2
  • Dimensions: 800mm x 600mm x 300mm (HxWxD)
  • Includes blind door and back plate


Product

Manufacturer Material ID -
SRN8630K
Net Weight -
32.20kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
31261502

Technical Specification

Number of conduit inlets -
-
Nominal current (In) -
- Ampere
RAL-number -
7035
Built-in depth -
232 Millimetre
Type of cover -
Door
Material housing -
Steel
Impact strength -
IK10
Degree of protection (IP) -
IP65
Circuit integrity -
None
Colour -
Grey
Cover model -
None
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
3R
Depth -
300 Millimetre
Height -
800 Millimetre
Housing material -
Steel
Impact resistance (IK rating) -
IK10
Internal depth -
283.5 Millimetre
Mounting method -
Surface mounted
Number of modules -
100
Number of openings for flange plates -
2
Number of rows -
4
Plate thickness cabinet -
1.2 Millimetre
Plate thickness door/cover -
1.2 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
232 Millimetre
Surface protection -
Powder coated
Type of covering -
Door
Type of door -
Single
Width -
600 Millimetre
Width in number of modular spacings -
25
With lock -
With mounting plate -
ABB

Availability On Request

£338.70
