2CKA006200A0074

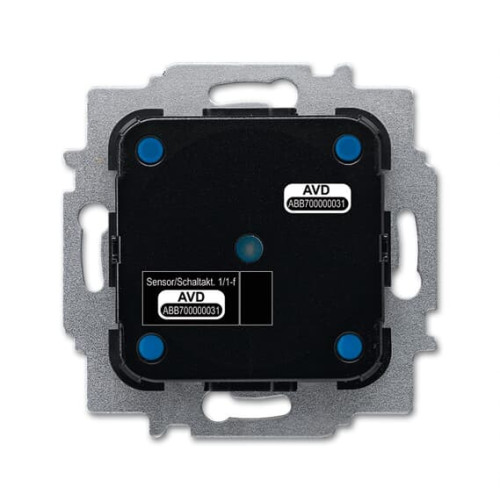

SSA-F-1.1.1-WL WL-Sensor/Switch act. 1/1g

Manufacturer's No: SSA-F-1.1.1-WL     Manufacturer: ABB
SSA-F-1.1.1-WL WL-Sensor/Switch act. 1/1g

Availability On Request

POA
  • Model: SSA-F-1.1.1-WL WL-Sensor/Switch actuator
  • Switches 230 V~ consumers
  • Wireless communication with free@home system
  • Integrated switch actuator
  • Pre-configured switching function, no prior programming required
  • Configuration changeable via web interface
  • Compatible with 1-gang rockers: 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx, 6234-10-xxx
  • 3-wire connection (neutral conductor needed)
  • 230 V extension unit input (On/Off)
  • Includes fixing claws


Product

Manufacturer Material ID -
SSA-F-1.1.1-WL
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

Width in number of modular spacings -
-
Number of binary inputs -
-
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Local operation/hand operation -
Max. number of switching contacts -
1
Max. switching current -
10 Ampere
Max. switching power -
2300 Watt
Minimum depth of back box -
32 Millimetre
Mounting method -
Flush mounted
Other bus systems -
Other
Radio frequent bidirectional -
Rated current -
10 Ampere
Rated operating voltage -
230 Volt
ABB

Availability On Request

POA
