3064180

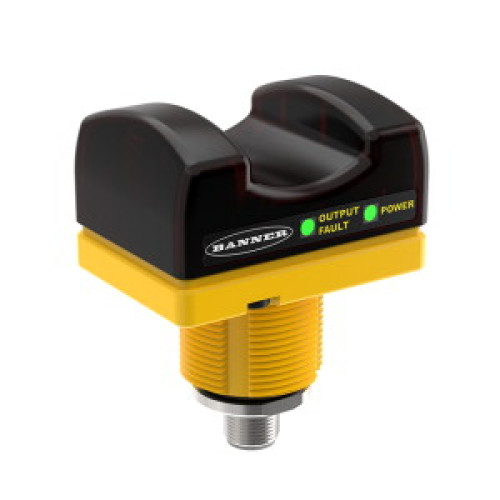

STB Series: Self-Checking Touch Button w/Yellow F.C., Input: 10-30 V dc, Upper Housing: Black Polyetherimide, Output: Complementar

Manufacturer's No: STBVP6Q     Manufacturer: Turck Banner
STB Series: Self-Checking Touch Button w/Yellow F.C., Input: 10-30 V dc, Upper Housing: Black Polyetherimide, Output: Complementary PNP, MINI-style Integral QD

Availability On Request

£168.77
  • Photoelectric sensor for two-hand control system
  • Operating voltage: 10-30 VDC

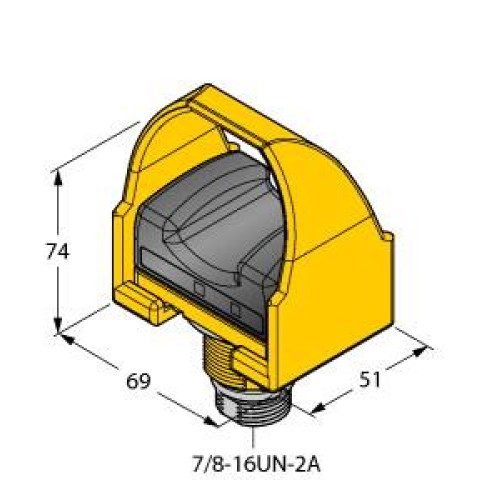

  • 7/8’’ male, 4-pin connection
  • Protection class: IP66
  • Ergonomically shaped with upper housing part made of polyetherimide
  • 1 safety NO output PNP, 1 safety NC output PNP
  • Pre-assembled protective cover
  • Safety category 4 according to EN ISO 13849-1
  • SIL 3 according to IEC 61508 and IEC 62061


Product

Manufacturer Material ID -
STBVP6Q
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216
