2CDS272337R0378

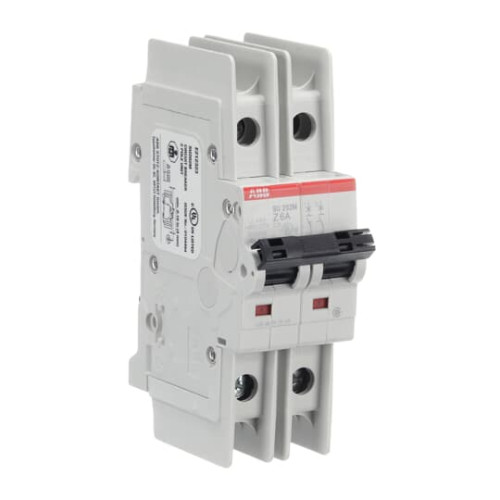

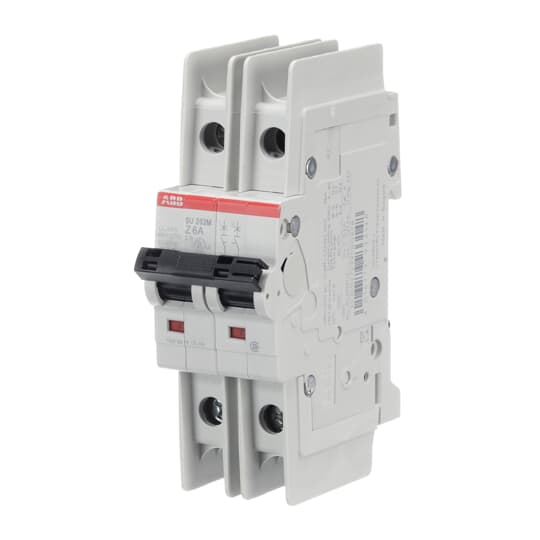

SU202M-Z6 Miniature Circuit Breaker - 2P - Z - 6 A

Manufacturer's No: SU202M-Z6     Manufacturer: ABB
SU202M-Z6 Miniature Circuit Breaker - 2P - Z - 6 A

Availability On Request

£146.46
  • Miniature Circuit Breaker
  • 2 poles
  • 6A current rating
  • Z-Char. trip curve
  • 10kA interrupting rating
  • UL489 listed


Product

Manufacturer Material ID -
SU202M-Z6
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
UNSPSC -
39121601

Technical Specification

Rated short-circuit breaking capacity Icn EN 60898 at 230 V -
- kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V -
- kiloampere
Built-in depth -
69 Millimetre
Release characteristic -
Z
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Current limiting class -
3
Degree of protection (IP rating) -
IP20
Frequency -
50 Hertz
Number of poles (total) -
2
Number of protected poles -
2
Over voltage category -
3
Pollution degree -
3
Power loss -
9.8 Watt
Rated current -
6 Ampere
Rated impulse-withstand voltage (Uimp) -
4 Kilovolt
Rated insulation voltage Ui -
440 Volt
Rated short-circuit breaking capacity Icn EN 60898 at 400 V -
11.2 kiloampere
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V -
15 kiloampere
Rated voltage -
440 Volt
Recess depth -
69 Millimetre
Tripping characteristic (type/curve) -
Z
Voltage type -
Other
Width in number of modular spacings -
2
ABB

Availability On Request

£146.46
