802682 {B}

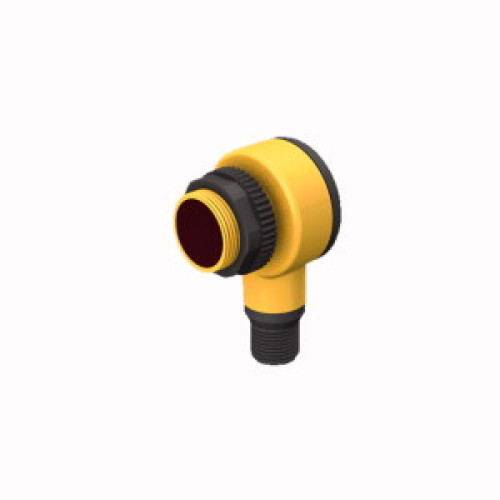

T18-2 Series: Fixed Field, Range: 200, Input: 10-30 V dc, Outputs: Complementary PNP, 4-pin M12 Integral QD

Manufacturer's No: T18-2VPFF200-Q8     Manufacturer: Turck Banner
T18-2 Series: Fixed Field, Range: 200, Input: 10-30 V dc, Outputs: Complementary PNP, 4-pin M12 Integral QD

Availability Available to order

POA
  • Photoelectric Sensor in Diffuse Mode
  • Fixed-Field Background Suppression
  • Operating Voltage: 10-30 VDC
  • Maximum Range: 200 mm
  • M12 x 1 Male Connector, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40°C to +70°C
  • PNP Switching Output
  • Suitable for Light and Dark Operation


Product

Manufacturer Material ID -
T18-2VPFF200-Q8
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39121527

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
54 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
200 Millimetre
Rated switching distance -
200 Millimetre
Reaction time -
1.5 Millisecond
Setting procedure -
Other
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
624 Nanometre
Width sensor -
30 Millimetre
