3044406

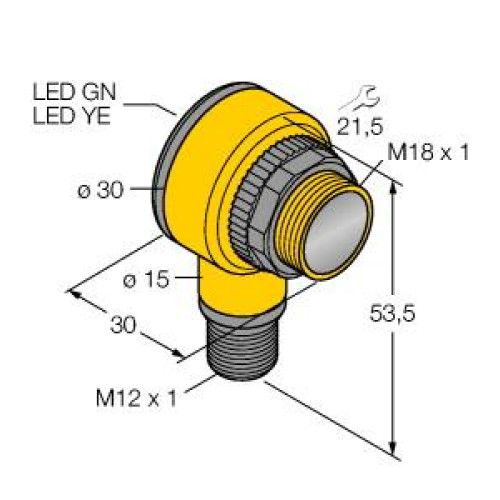

Photoelectric Sensor, Diffuse Mode Sensor

Manufacturer's No: T18AP6DQ     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor

Availability On Request

POA
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 500 mm
  • Connector: M12 x 1 male, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40°C to +70°C
  • Selectable light/dark operation
  • Light operation with alarm function
  • PNP switching output, changeover


Product

Manufacturer Material ID -
T18AP6DQ
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Height of sensor -
54 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
500 Millimetre
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
880 Nanometre
Width sensor -
30 Millimetre
Turck Banner

Availability On Request

POA
