Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Manufacturer's No: T18RW3FF25     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Availability On Request

POA
  • Type: Photoelectric Sensor, Diffuse Mode with Fixed-Field Background Suppression
  • Operating Voltage: 20-250 VAC
  • Max. Range: 25 mm
  • Cable Length: 2 meters
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70°C


Product

Manufacturer Material ID -
T18RW3FF25
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

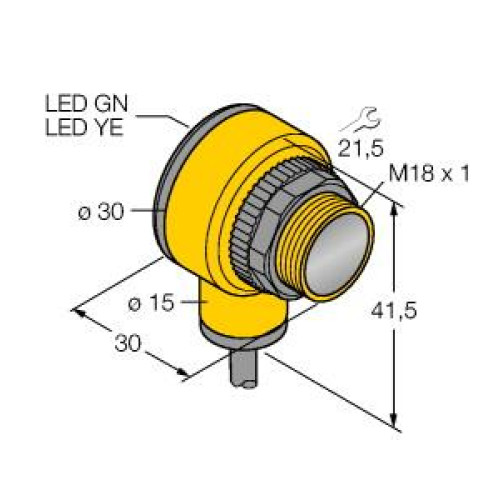

Diameter sensor -
18 Millimetre
Height of sensor -
41.5 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
25 Millimetre
Rated switching distance -
25 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Dark switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
Relay contact
Wavelength of the sensor -
880 Nanometre
Width sensor -
30 Millimetre
