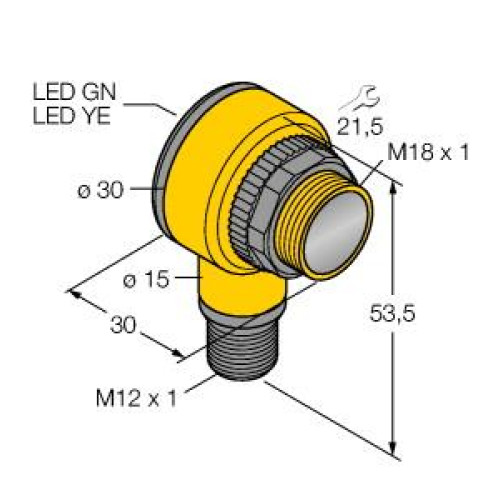

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Manufacturer's No: T18RW3LPQ3     Manufacturer: Turck Banner
Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Availability On Request

POA
  • Photoelectric sensor with retroreflective sensor and polarizing filter
  • Operating voltage: 20 to 250 VAC
  • Maximum range: 2000 mm
  • Connector: M12 × 1 male, 4-pin
  • Protection classes: IP67/IP69K
  • Ambient temperature: -40°C to +70°C
  • Selectable light/dark operation or light operation with alarm function


Product

Manufacturer Material ID -
T18RW3LPQ3
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
54 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Dark switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Other
Type of switching output -
Relay contact
Wavelength of the sensor -
680 Nanometre
Width sensor -
30 Millimetre
