3033413

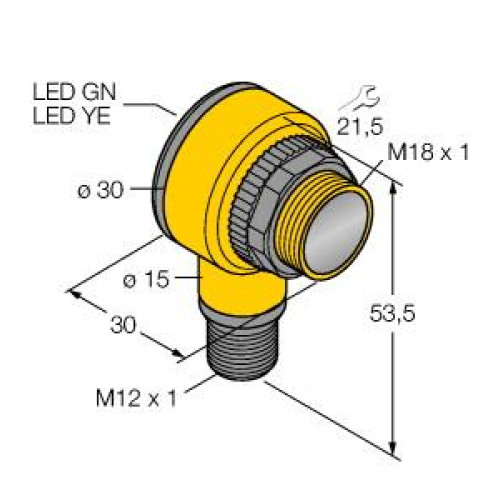

EZBEAM T18 Series: Fixed Field; Range: 100 mm; Input: 1030 V dc; Output: Complementary NPN; Euro M12 4pin Integral QD;

Manufacturer's No: T18SN6FF100Q
EZBEAM T18 Series: Fixed Field; Range: 100 mm; Input: 1030 V dc; Output: Complementary NPN; Euro M12 4pin Integral QD;

Availability Back Order

POA
  • Model: EZBEAM T18 Series
  • Type: Fixed Field
  • Range: 100 mm
  • Input: 1030 V dc
  • Output: Complementary NPN
  • Connector: Euro M12 4pin Integral QD


Product

Manufacturer Material ID -
T18SN6FF100Q
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
54 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
100 Millimetre
Rated switching distance -
100 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Wavelength of the sensor -
880 Nanometre
Width sensor -
30 Millimetre


Availability Back Order

POA
