3034629

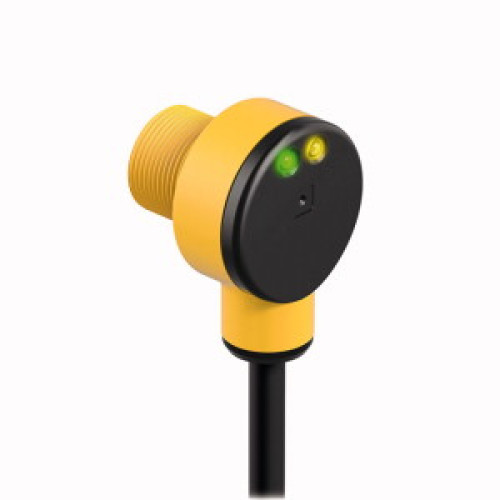

Photoelectric Sensor, Diffuse Mode Sensor

Manufacturer's No: T18SP6D     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor

Availability On Request

POA
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 500 mm
  • Cable length: 2 m
  • Protection class: IP67
  • Ambient temperature: -40 to +70 °C
  • Selectable light/dark operation
  • Light operation with alarm function
  • PNP switching output, changeover


Product

Manufacturer Material ID -
T18SP6D
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

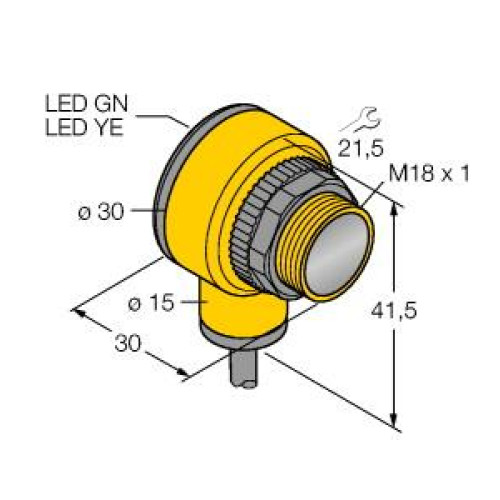

Diameter sensor -
18 Millimetre
Height of sensor -
41.5 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
500 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
880 Nanometre
Width sensor -
30 Millimetre
Turck Banner
