3034631

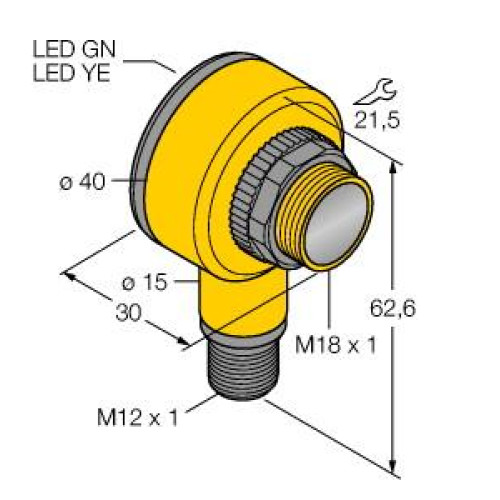

EZ-BEAM SENSOR 500MM 10-30VDC

Manufacturer's No: T18SP6DQ     Manufacturer: Turck Banner
EZ-BEAM SENSOR 500MM 10-30VDC

Availability Back Order

POA
  • Sensor type: EZ-BEAM
  • Sensing range: 500mm
  • Operating voltage: 10-30VDC


Product

Manufacturer Material ID -
T18SP6DQ
Net Weight -
0.05kg

Additional Product Information

Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
54 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
500 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
880 Nanometre
Width sensor -
30 Millimetre
Turck Banner

Availability Back Order

POA
