3056559

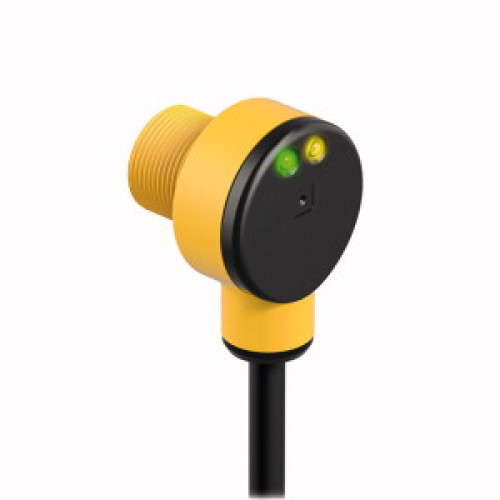

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Manufacturer's No: T18SP6FF25     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Availability On Request

POA
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 25 mm
  • Cable length: 2 m
  • Protection class: IP67
  • Ambient temperature range: -40 to +70 °C
  • PNP switching output with changeover functionality


Product

Manufacturer Material ID -
T18SP6FF25
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

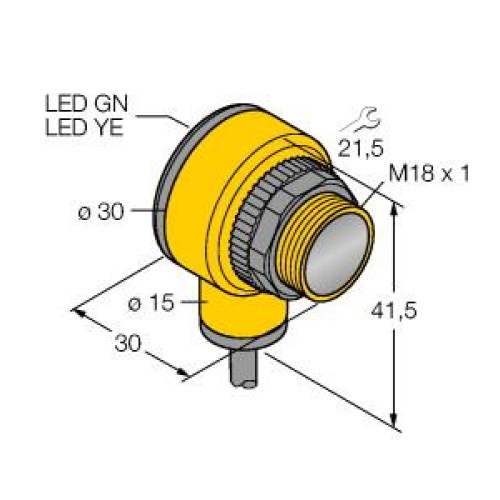

Diameter sensor -
18 Millimetre
Height of sensor -
41.5 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
25 Millimetre
Rated switching distance -
25 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
880 Nanometre
Width sensor -
30 Millimetre
