3073336

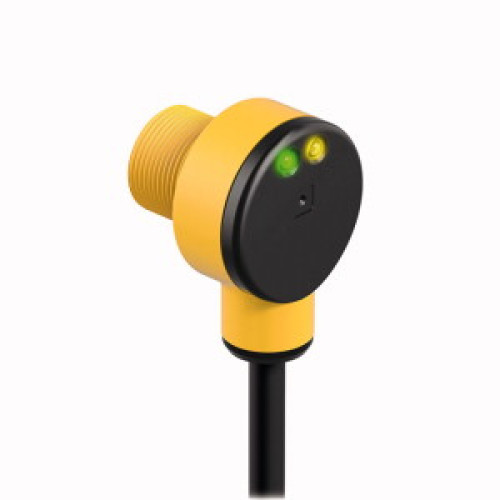

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Manufacturer's No: T18SP6LPQP     Manufacturer: Turck Banner
Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Availability On Request

POA
  • Photoelectric Sensor: Retroreflective type with Polarizing Filter
  • Operating Voltage: 10-30 VDC
  • Max. Range: 2000 mm
  • Cable Length: 0.15 m, M12 x 1 male end
  • Protection Class: IP67
  • Ambient Temperature: -40°C to +70°C
  • Light/Dark or Light operation with alarm function
  • PNP switching output, changeover


Product

Manufacturer Material ID -
T18SP6LPQP
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

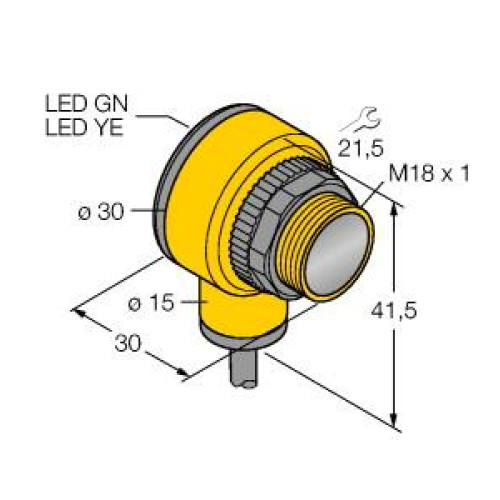

Diameter sensor -
18 Millimetre
Height of sensor -
41.5 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
2000 Millimetre
Rated switching distance -
2000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
680 Nanometre
Width sensor -
30 Millimetre
