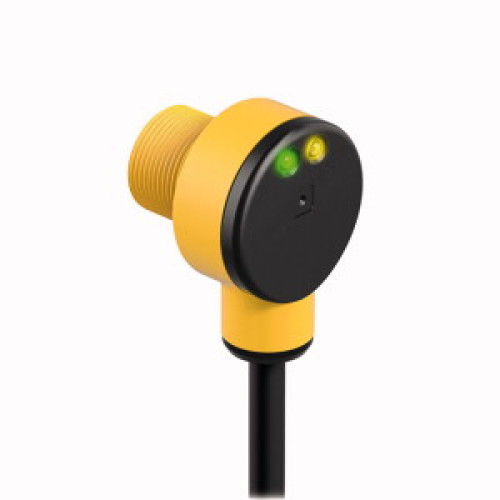

Photoelectric Sensor, Opposed Mode Sensor (Receiver)

Manufacturer's No: T18SP6R W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Opposed Mode Sensor (Receiver)

Availability On Request

POA
  • Photoelectric Sensor (Receiver)
  • Opposed Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 20000 mm
  • Cable Length: 9 m
  • Cable: 2 m
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70 °C
  • Selectable light/dark operation
  • Light operation with alarm function

Read more

  • PNP switching output, changeover


Product

Manufacturer Material ID -
T18SP6R W/30
Net Weight -
0.62kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67

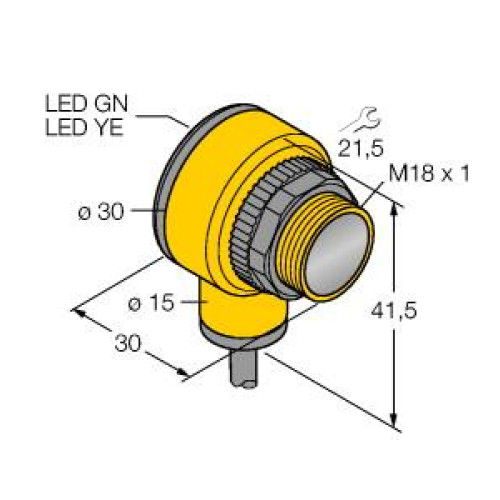

Diameter sensor -
18 Millimetre
Height of sensor -
41.5 Millimetre
Housing material -
Plastic
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Width sensor -
30 Millimetre
Turck Banner
