3033442

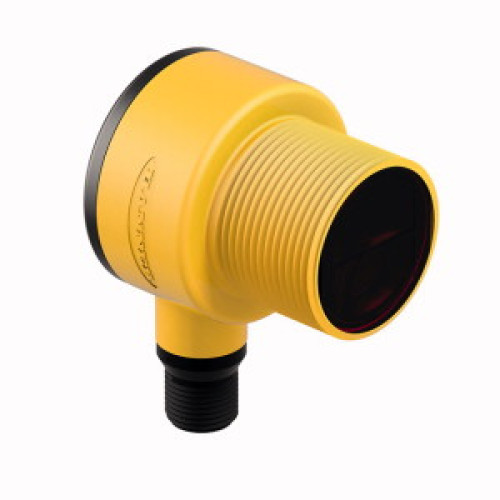

EZ-BEAM T30 Series: Emitter, Range: 60 m, Input: 10-30 V dc, Output: Not Applicable, 4-pin M12 Integral QD

Manufacturer's No: T306EQ     Manufacturer: Turck Banner
EZ-BEAM T30 Series: Emitter, Range: 60 m, Input: 10-30 V dc, Output: Not Applicable, 4-pin M12 Integral QD

Availability On Request

£59.89
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 60,000 mm
  • Connector: M12 × 1 male, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40°C to +70°C


Product

Manufacturer Material ID -
T306EQ
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius

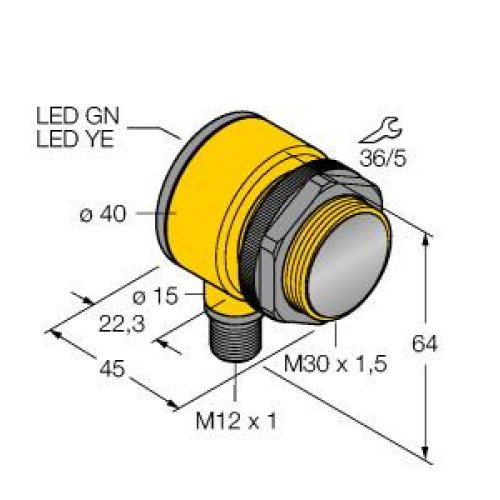

Diameter sensor -
30 Millimetre
Height of sensor -
64 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Type of electric connection -
Connector M12
Type of light -
Infrared light
Wavelength of the sensor -
950 Nanometre
Width sensor -
40 Millimetre
Turck Banner

Availability On Request

£59.89
