3032491

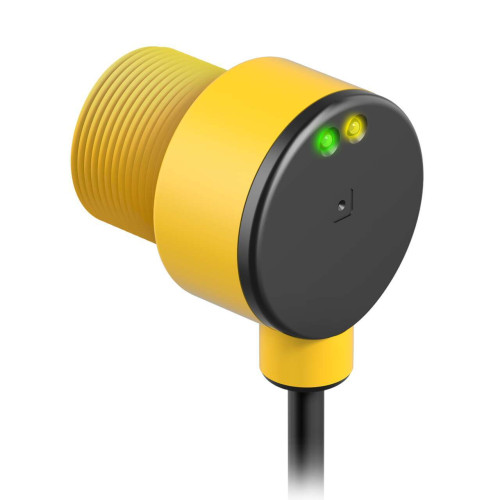

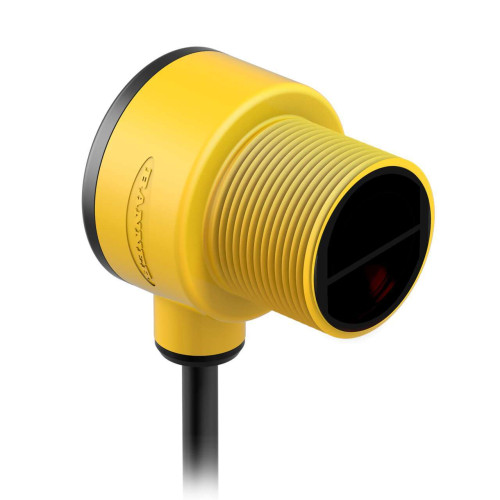

EZ-BEAM T30 Series: Fixed Field, Range: 400, Input: 20-250 V ac, Output: SPST Solid-State Light Operate, 2 m (6.5 ft) Cable

Manufacturer's No: T30AW3FF400     Manufacturer: Turck Banner
EZ-BEAM T30 Series: Fixed Field, Range: 400, Input: 20-250 V ac, Output: SPST Solid-State Light Operate, 2 m (6.5 ft) Cable

Availability Back Order

£153.40
  • Model: EZ-BEAM T30 Series
  • Type: Fixed Field
  • Range: 400 mm
  • Input: 20-250 V AC
  • Output: SPST Solid-State Light Operate
  • Cable Length: 2 meters (6.5 feet)


Product

Manufacturer Material ID -
T30AW3FF400
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius

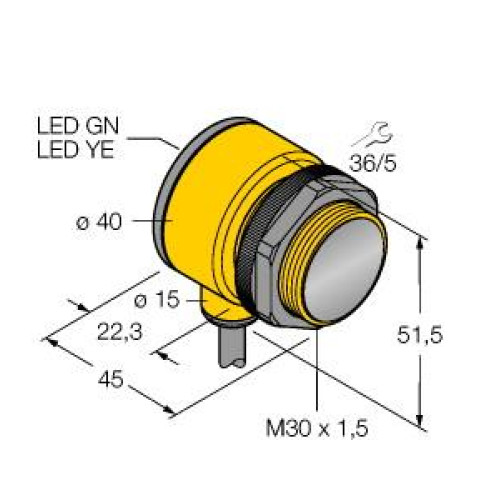

Diameter sensor -
30 Millimetre
Height of sensor -
51.5 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
400 Millimetre
Rated switching distance -
400 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Light switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
Relay contact
Wavelength of the sensor -
880 Nanometre
Width sensor -
40 Millimetre
