3033441

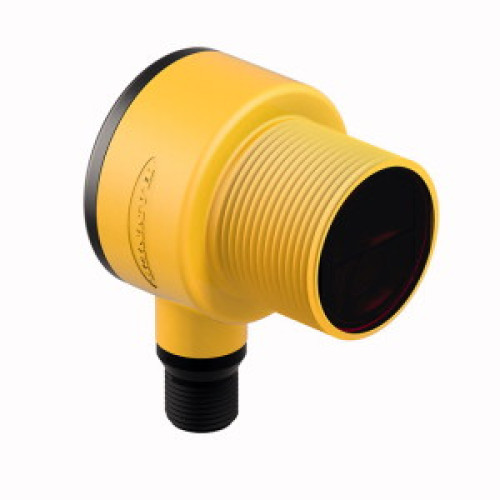

EZ-BEAM T30 Series: Polarized Retro, Range: 6 m, Input: 20-250 V ac, Output: SPST Solid-state Dark Operate, 4-pin Micro Integral Q

Manufacturer's No: T30RW3LPQ1     Manufacturer: Turck Banner
EZ-BEAM T30 Series: Polarized Retro, Range: 6 m, Input: 20-250 V ac, Output: SPST Solid-state Dark Operate, 4-pin Micro Integral QD

Availability On Request

£143.36
  • Type: Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter
  • Operating Voltage: 20-250 VAC
  • Maximum Range: 6000 mm
  • Connector: M12 × 1 male, 4-pin
  • Protection Classes: IP67/IP69K
  • Ambient Temperature: -40°C to +70°C


Product

Manufacturer Material ID -
T30RW3LPQ1
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius

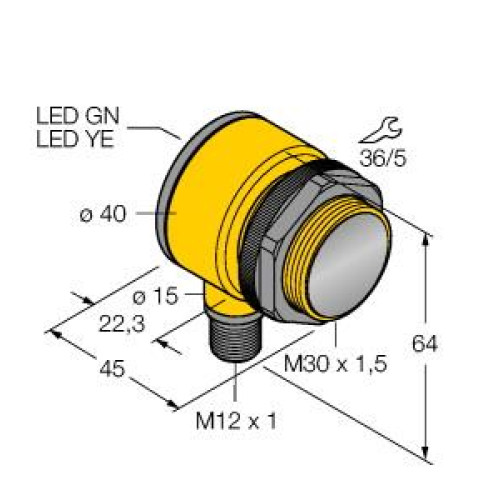

Diameter sensor -
30 Millimetre
Height of sensor -
64 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Reaction time -
16 Millisecond
Sensing mode -
Dark switching
Setting procedure -
Other
Switching frequency -
40 Hertz
Type of electric connection -
Connector 1/2 inch
Type of light -
Polarized red light
Type of switch function -
Other
Type of switching output -
Relay contact
Wavelength of the sensor -
680 Nanometre
Width sensor -
40 Millimetre
Turck Banner

Availability On Request

£143.36
