3083042

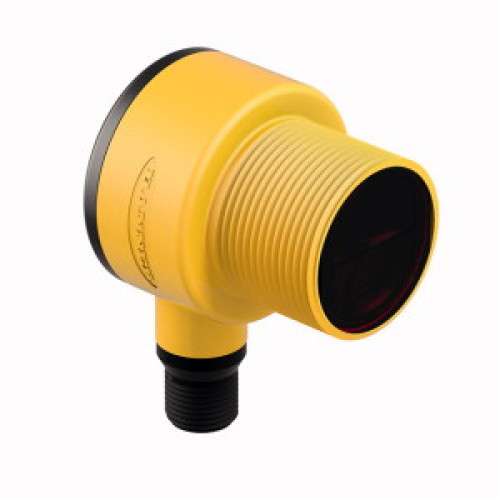

T30SCP6FF600Q FLUORESCENT IMM

Manufacturer's No: T30SCP6FF600Q     Manufacturer: Turck Banner
T30SCP6FF600Q FLUORESCENT IMM

Availability On Request

£132.47
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 600 mm
  • M12 x 1 male connector with 4-pin configuration
  • Protection classes: IP67/IP69K
  • Ambient temperature range: -40°C to +70°C
  • PNP switching output with changeover functionality


Product

Manufacturer Material ID -
T30SCP6FF600Q
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

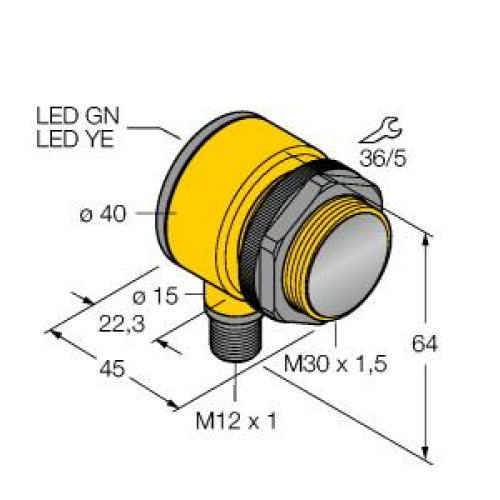

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-40 Degrees celsius
Diameter sensor -
30 Millimetre
Height of sensor -
64 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
600 Millimetre
Rated switching distance -
600 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Programmable/configurable
Type of switching output -
PNP
Wavelength of the sensor -
880 Nanometre
Width sensor -
40 Millimetre
Turck Banner

Availability On Request

£132.47
