3055548

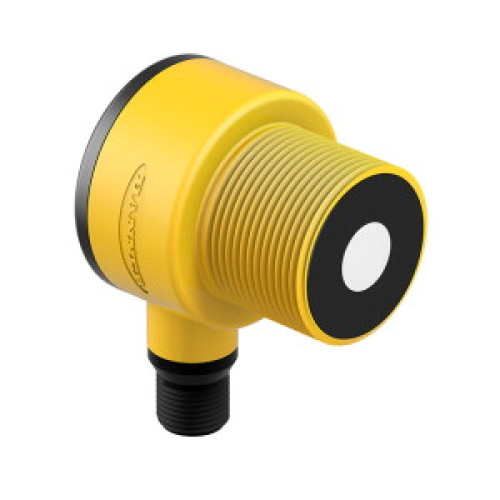

Dual-Discrete T30U Series: Proximity Mode, Range: 150 - 1 m, Input: 12-24 V dc, Outputs: Two Discrete NPN, M12 Integral QD

Manufacturer's No: T30UDNAQ     Manufacturer: Turck Banner
Dual-Discrete T30U Series: Proximity Mode, Range: 150 - 1 m, Input: 12-24 V dc, Outputs: Two Discrete NPN, M12 Integral QD

Availability On Request

POA
  • Ultrasonic sensor in diffuse mode
  • Operating voltage: 12-24 VDC
  • Max. range: 1000 mm
  • Compact design
  • Connection via male M12 x 1
  • Two PNP transistor outputs
  • Two independent switching ranges adjustable
  • Blind zone: 15 cm
  • Range: 100 cm


Product

Manufacturer Material ID -
T30UDNAQ
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
41111926

Technical Specification

Ambient temperature -
-20 Degrees celsius
Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
150 Millimetre
Supply voltage -
12 Volt
Switching frequency -
20 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Turck Banner

Availability On Request

POA
