3055977

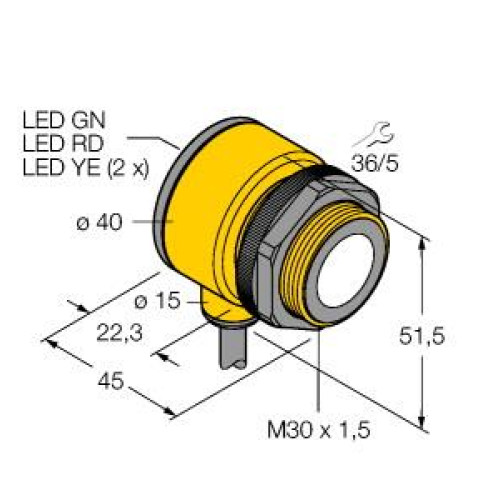

Analog/Discrete T30U Series: Proximity Mode, Range: 150 - 1 m, Input: 12-24 V dc, Outputs: Discrete: NPN, Analog: 4-20 mA, 2 m (6.

Manufacturer's No: T30UINA     Manufacturer: Turck Banner
Analog/Discrete T30U Series: Proximity Mode, Range: 150 - 1 m, Input: 12-24 V dc, Outputs: Discrete: NPN, Analog: 4-20 mA, 2 m (6.5 ft) Cable

Availability On Request

£494.51
  • Ultrasonic sensor in diffuse mode
  • Operating voltage: 15-24 VDC
  • Max. range: 1000 mm
  • Compact design
  • Cable length: 2 m
  • PNP transistor output and analog output
  • Measuring range adjustable via teach-in
  • Blind zone: 15 cm
  • Range: 100 cm


Product

Manufacturer Material ID -
T30UINA
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
150 Millimetre
Supply voltage -
15 Volt
Switching frequency -
20 Hertz
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Turck Banner

Availability On Request

£494.51
