3055992

Analog/Discrete T30U Series: Proximity Mode, Range: 300 - 2 m, Input: 15-24 V dc, Outputs: Discrete: PNP, Analog: 0-10 V dc, 2 m (

Manufacturer's No: T30UUPB     Manufacturer: Turck Banner

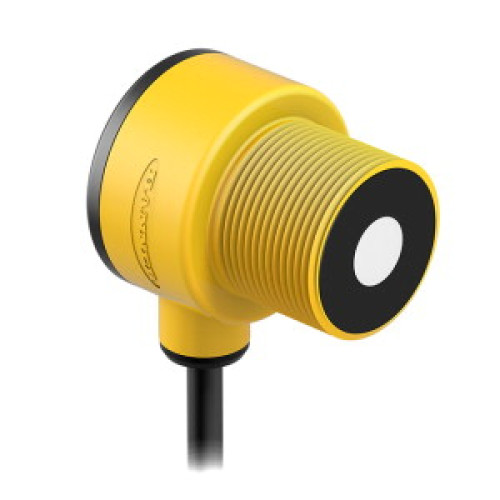

Analog/Discrete T30U Series: Proximity Mode, Range: 300 - 2 m, Input: 15-24 V dc, Outputs: Discrete: PNP, Analog: 0-10 V dc, 2 m (6.5 ft) Cable

Availability On Request

£511.75
  • Ultrasonic sensor in diffuse mode
  • Operating voltage: 15-24 VDC
  • Max. range: 2000 mm
  • Compact design
  • Cable length: 2 m
  • PNP transistor output and analog output for voltage
  • Measuring range adjustable via teach-in
  • Blind zone: 30 cm
  • Range: 200 cm


Product

Manufacturer Material ID -
T30UUPB
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

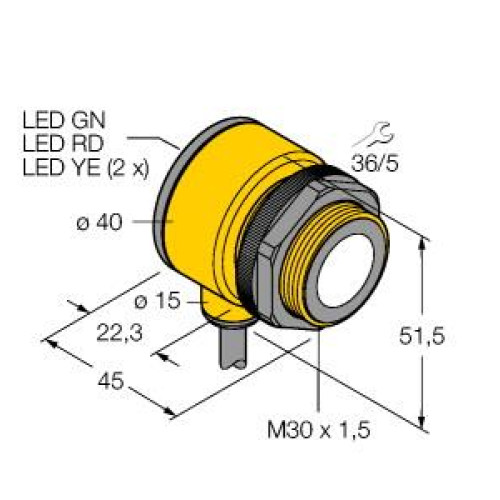

Technical Specification

Ambient temperature -
-20 Degrees celsius
Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
300 Millimetre
Supply voltage -
15 Volt
Switching frequency -
20 Hertz
Type of analogy output -
0 V ... 10 V
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
Other
Turck Banner

Availability On Request

£511.75
