3079993

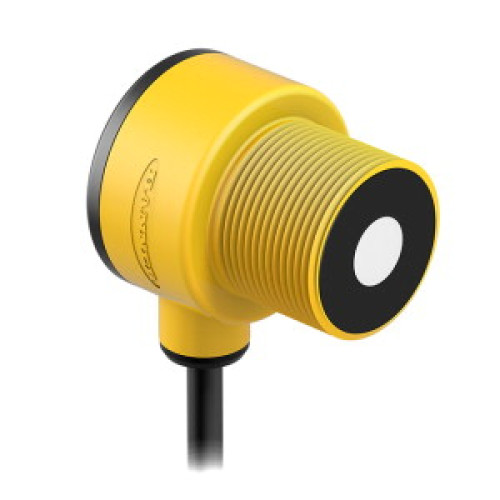

T30UX Series w/ Discrete Output, Range: 100 - 1 m, Input: 10-30 V dc, Output: NPN PNP NO NC selectable, 2 m (6.5 ft) Cable

Manufacturer's No: T30UXDA     Manufacturer: Turck Banner
T30UX Series w/ Discrete Output, Range: 100 - 1 m, Input: 10-30 V dc, Output: NPN PNP NO NC selectable, 2 m (6.5 ft) Cable

Availability On Request

£370.20
  • Ultrasonic sensor in diffuse mode
  • Operating voltage: 10-30 VDC
  • Max. range: 1000 mm
  • Cable length: 2 m
  • Compact design
  • Switching output: PNP/NPN adjustable, NO/NC adjustable
  • Integrated temperature compensation
  • Switching range adjustable via button or control line
  • Blind zone: 10 cm
  • Range: 100 cm


Product

Manufacturer Material ID -
T30UXDA
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
100 Millimetre
Supply voltage -
10 Volt
Switching frequency -
10 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Turck Banner

Availability On Request

£370.20
