3079998

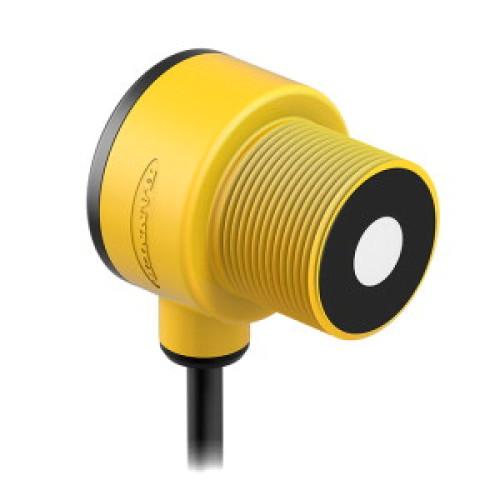

T30UX Series w/ Discrete Output, Range: 200 - 2 m, Input: 10-30 V dc, Output: NPN PNP NO NC selectable, 2 m (6.5 ft) Cable

Manufacturer's No: T30UXDB     Manufacturer: Turck Banner
T30UX Series w/ Discrete Output, Range: 200 - 2 m, Input: 10-30 V dc, Output: NPN PNP NO NC selectable, 2 m (6.5 ft) Cable

Availability On Request

£385.63
  • Ultrasonic Sensor in diffuse mode
  • Operating voltage: 10-30 VDC
  • Max. range: 2000 mm
  • Cable length: 2 m, 4-pin
  • Compact design
  • Switching output: PNP/NPN adjustable, NO/NC adjustable
  • Integrated temperature compensation
  • Switching range adjustable via button or control line
  • Blind zone: 20 cm
  • Range: 200 cm


Product

Manufacturer Material ID -
T30UXDB
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

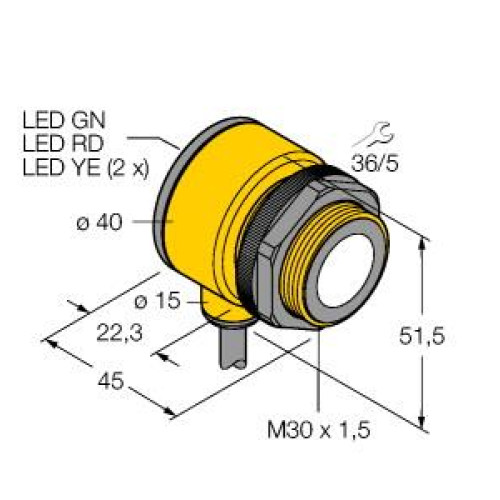

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
200 Millimetre
Supply voltage -
10 Volt
Switching frequency -
5 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Turck Banner

Availability On Request

£385.63
