3080460

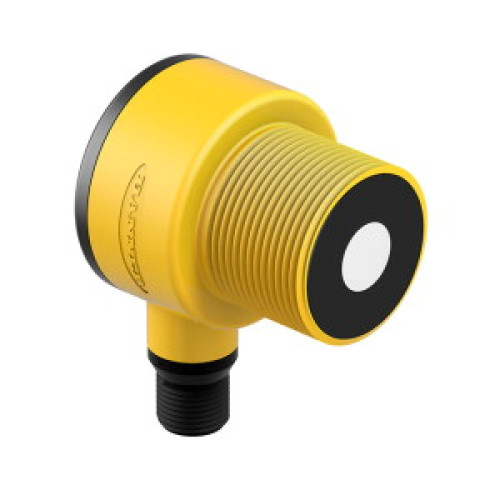

T30UX Series w/ Discrete Output, Range: 300 - 3 m, Input: 10-30 V dc, Output: NPN PNP NO NC selectable, 4-pin M12 Integral QD

Manufacturer's No: T30UXDCQ8     Manufacturer: Turck Banner
T30UX Series w/ Discrete Output, Range: 300 - 3 m, Input: 10-30 V dc, Output: NPN PNP NO NC selectable, 4-pin M12 Integral QD

Availability On Request

£399.24
  • Type: Ultrasonic Sensor (diffuse mode)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 3000 mm
  • Compact design
  • Cable: M12 x 1, 4-pin
  • Switching Output: PNP/NPN adjustable, NO/NC adjustable
  • Integrated temperature compensation
  • Switching Range adjustable via button or control line
  • Blind Zone: 30 cm
  • Range: 300 cm


Product

Manufacturer Material ID -
T30UXDCQ8
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
300 Millimetre
Supply voltage -
10 Volt
Switching frequency -
3 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Turck Banner

Availability On Request

£399.24
