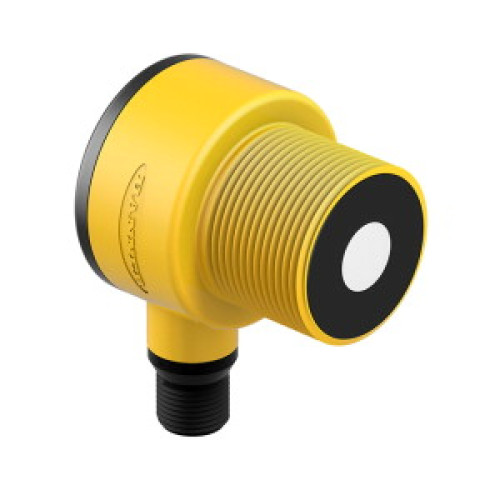

3080491

T30UX Series w/ Analog Output, Range: 300 - 3 m, Input: 10-30 V dc, Analog Output: 4-20 mA, 4-pin M12 Integral QD

Manufacturer's No: T30UXICQ8     Manufacturer: Turck Banner
T30UX Series w/ Analog Output, Range: 300 - 3 m, Input: 10-30 V dc, Analog Output: 4-20 mA, 4-pin M12 Integral QD

Availability On Request

£474.55
  • Ultrasonic diffuse mode sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 3000 mm
  • Compact design with M12 x 1, 4-pin male end cable
  • Analog output: 4-20 mA
  • Response time adjustable
  • Integrated temperature compensation
  • Measuring range adjustable via teach-in
  • Blind zone: 30 cm
  • Range: 300 cm


Product

Manufacturer Material ID -
T30UXICQ8
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius

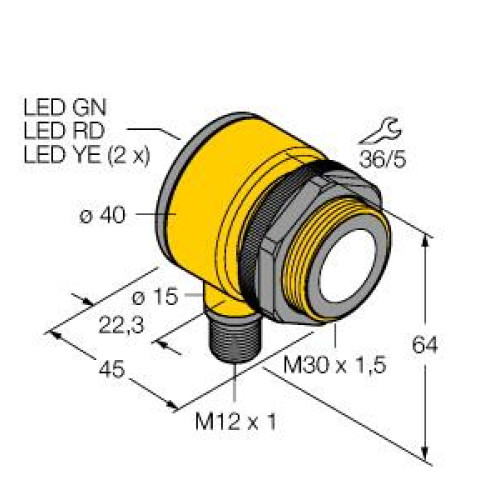

Diameter sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
45 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
300 Millimetre
Supply voltage -
10 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Plug-in connection
Type of switching output -
Other
Turck Banner

Availability On Request

£474.55
