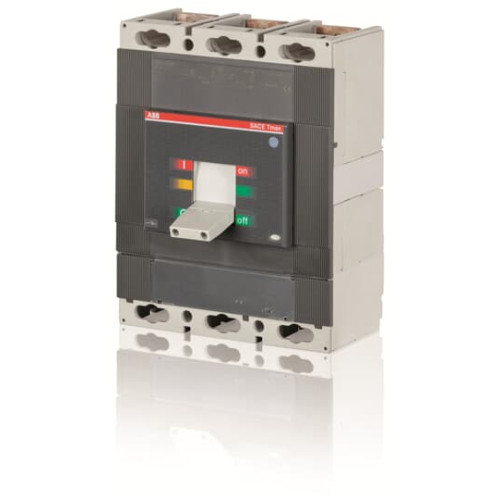

1SDA060343R1

T6D 630 3p F F

Manufacturer's No: T6D 630 3P FF     Manufacturer: ABB
T6D 630  3p F F

Availability Back Order

£2,218.31
  • Model: T6D 630
  • Type: Switch-Disconnector
  • Configuration: Fixed three-pole
  • Terminals: Front
  • Maximum Current: 630A


Product

Manufacturer Material ID -
T6D 630 3P FF
Net Weight -
11.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
IT
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-23, 400 V -
- Kilowatt
Switching power at 400 V -
- Kilowatt
Type of control element -
Toggle
Colour control element -
Grey
Degree of protection (IP), front side -
IP20
Degree of protection (NEMA) -
1
Depth -
103.5 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
268 Millimetre
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Rated operating voltage -
0 Volt
Rated permanent current at AC-21, 400 V -
630 Ampere
Rated permanent current Iu -
630 Ampere
Rated short-time withstand current lcw -
15 kiloampere
Suitable for distribution board installation -
Type of electrical connection of main circuit -
Bolt connection
Version as main switch -
Voltage release optional -
Width -
210 Millimetre
ABB

Availability Back Order

£2,218.31
