3066656

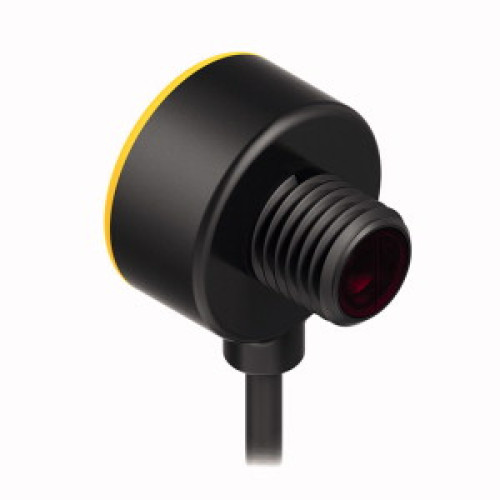

T8 Series: Diffuse, Range: 50, Input: 10-30 V dc, Output: NPN Light Operate, 150 (6 in) M8 Pigtail QD

Manufacturer's No: T8AN6D50Q     Manufacturer: Turck Banner
T8 Series: Diffuse, Range: 50, Input: 10-30 V dc, Output: NPN Light Operate, 150 (6 in) M8 Pigtail QD

Availability On Request

£139.73
  • Photoelectric sensor in diffuse mode
  • Miniature sensor with a compact size
  • Operating voltage: 10-30 VDC
  • Maximum range: 50 mm
  • Cable length: 0.15 m with male end, PVC material

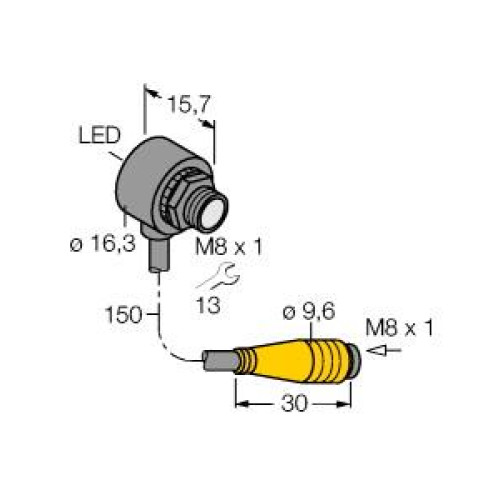

  • M8 x 1, 150 mm
  • Protection class: IP67
  • Ambient temperature range: -20 to +55 °C
  • NPN switching output for light operation
  • Ideal for use in confined spaces


Product

Manufacturer Material ID -
T8AN6D50Q
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
8 Millimetre
Housing material -
Plastic
Length of sensor -
15.8 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
50 Millimetre
Reaction time -
1 Millisecond
Sensing mode -
Light switching
Switching frequency -
500 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Wavelength of the sensor -
680 Nanometre
