1SBL183061R5110

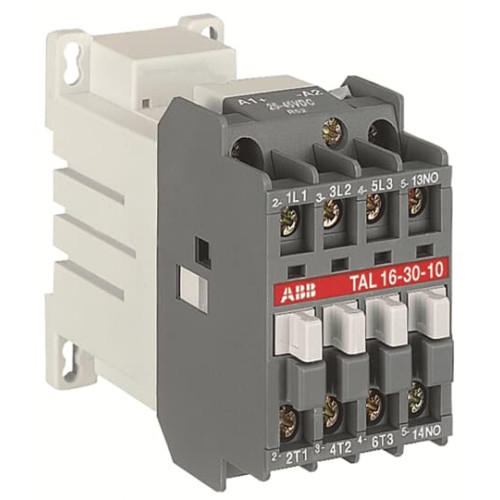

TAL16-30-10 17-32V DC Contactor

Manufacturer's No: TAL16-30-10     Manufacturer: ABB
TAL16-30-10 17-32V DC Contactor

Availability Available to order

£177.89
  • Model: TAL16-30-10 17-32V DC Contactor
  • Suitable for controlling 3-phase motors and power circuits up to 690V AC or 220V DC
  • Applications: isolation, capacitor switching, lighting
  • Design: 1-stack 3-pole contactor with block type design
  • Poles: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks
  • Control Circuit: DC operated with solid core magnet circuit
  • Coil: Low consumption DC coils with a large voltage range
  • Accessories: Wide range of accessories available


Product

Manufacturer Material ID -
TAL16-30-10
Net Weight -
0.52kg

Additional Product Information

Commodity Code -
85364900
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Depth -
97 Millimetre
Height -
78 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at DC -
17 Volt
Rated operation current Ie at AC-1, 400 V -
30 Ampere
Rated operation current Ie at AC-3, 400 V -
17 Ampere
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
44 Millimetre
ABB

Availability Available to order

£177.89
