1SBL243261R5100

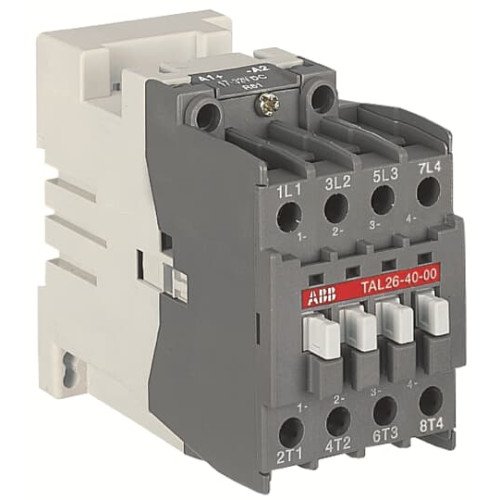

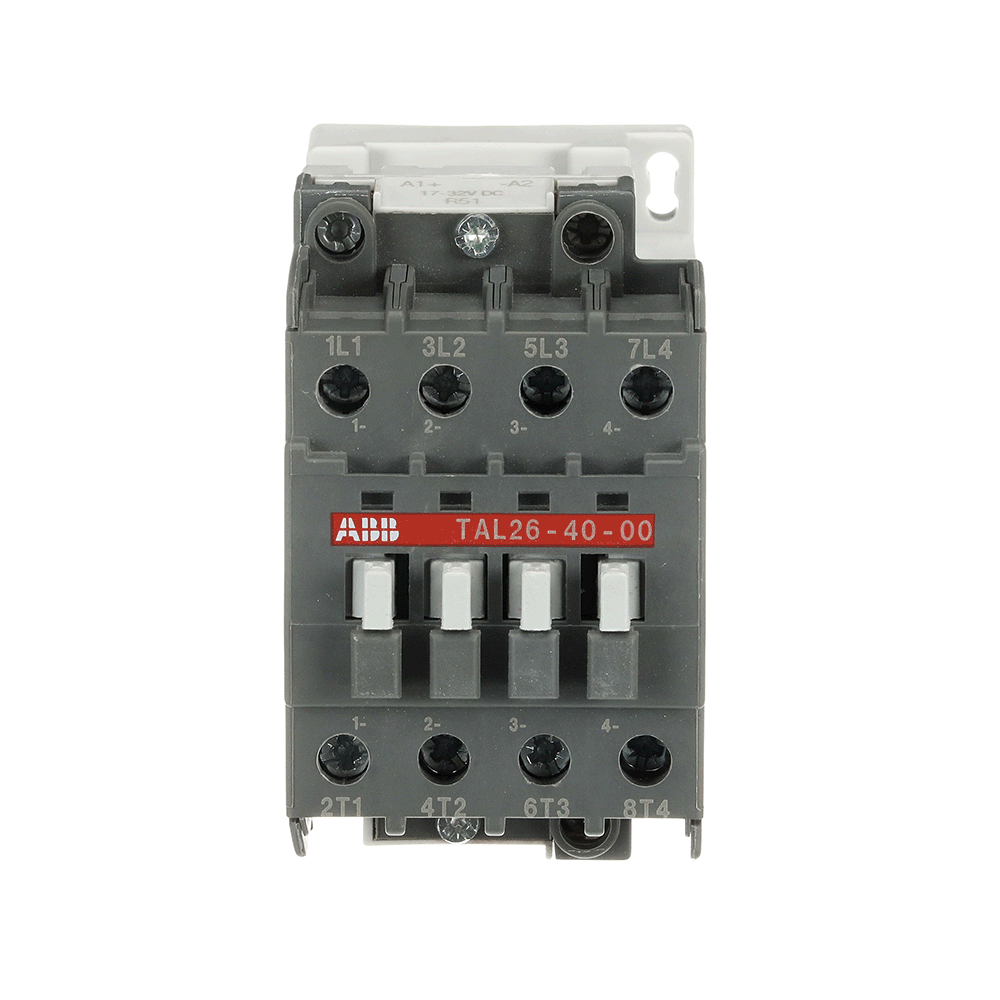

TAL26-40-00 17-32V DC Contactor

Manufacturer's No: TAL26-40-00     Manufacturer: ABB
TAL26-40-00 17-32V DC Contactor

Availability Available to order

£244.14
  • Model: TAL26-40-00 17-32V DC Contactor
  • Used for controlling non-inductive or slightly inductive loads
  • Suitable for power circuits up to 690V AC and 440V DC
  • 4-pole contactors with block type design
  • Main poles: 4 N.O. main poles
  • Auxiliary contact blocks: Front and side-mounted add-on auxiliary contact blocks
  • Control circuit: DC operated with solid core magnet circuit
  • Coil terminals: A1+ and A2- polarity must be respected
  • Accessories: Wide range of available accessories
  • Features low consumption DC coils

Read more

  • Offers a large coil voltage range


Product

Manufacturer Material ID -
TAL26-40-00
Net Weight -
0.75kg

Additional Product Information

Commodity Code -
85364900
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Depth -
110.6 Millimetre
Height -
90 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of main contacts as normally open contact -
4
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at DC -
17 Volt
Rated operation current Ie at AC-1, 400 V -
45 Ampere
Rated operation current Ie at AC-3, 400 V -
26 Ampere
Rated operation power at AC-3, 400 V -
11 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
54 Millimetre
ABB

Availability Available to order

£244.14
