1SBL323061R5110

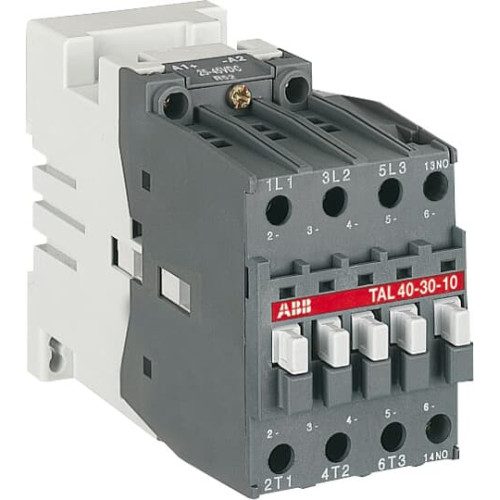

TAL40-30-10 17-32V DC Contactor

Manufacturer's No: TAL40-30-10     Manufacturer: ABB
TAL40-30-10 17-32V DC Contactor

Availability Available to order

£322.46
  • Model: TAL40-30-10 17-32V DC Contactor
  • Suitable for controlling 3-phase motors and power circuits up to 690V AC or 220V DC
  • Applications: isolation, capacitor switching, lighting
  • Design: 1-stack 3-pole contactor with block type design
  • Main Poles: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks
  • Control Circuit: DC operated with solid core magnet circuit
  • Coil Voltage Range: Wide range available with low consumption DC coils
  • Accessories: Various accessories are available


Product

Manufacturer Material ID -
TAL40-30-10
Net Weight -
0.85kg

Additional Product Information

Commodity Code -
85364900
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Depth -
125.3 Millimetre
Height -
90 Millimetre
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
3
Number of normally closed contacts as main contact -
0
Operating voltage at AC 50 Hz -
690 Volt
Operating voltage at AC 60 Hz -
690 Volt
Rated control supply voltage at DC -
17 Volt
Rated operation current Ie at AC-1, 400 V -
60 Ampere
Rated operation current Ie at AC-3, 400 V -
37 Ampere
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Width -
54 Millimetre
ABB

Availability Available to order

£322.46
