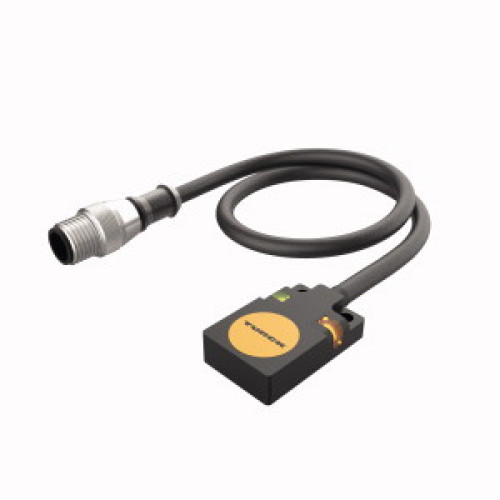

HF Read/Write Head, For Bus Line Topology with TBEN-*

Manufacturer's No: TB-Q08-0.15-RS4.47T/C53     Manufacturer: Turck Banner
HF Read/Write Head, For Bus Line Topology with TBEN-*

Availability On Request

£257.06
  • HF Read/Write Head for Bus Line Topology
  • Operating voltage: 10-30 VDC
  • Flush mounting style
  • Cable length: 0.15 m
  • Rectangular shape with a height of 8 mm
  • Active face on top
  • Material: Metal (GD-Zn, nickel-plated brass)
  • Device without end termination
  • Compatible with line topologies TBEN-S-2RFID- or TBEN-L-4RFID-
  • Max. 32 nodes per line/connection

Read more

  • Requires corresponding terminating resistor (accessory)
  • Maximum spur line length: 2 m
  • Maximum bus length: 50 m
  • HF bus mode allows processing of commands by one read/write head
  • Suitable for static and slow dynamic applications
  • Continuous HF bus mode executes commands simultaneously on all read/write heads
  • Recorded data stored in the module's ring buffer


Product

Manufacturer Material ID -
TB-Q08-0.15-RS4.47T/C53
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
DE
UNSPSC -
39121402

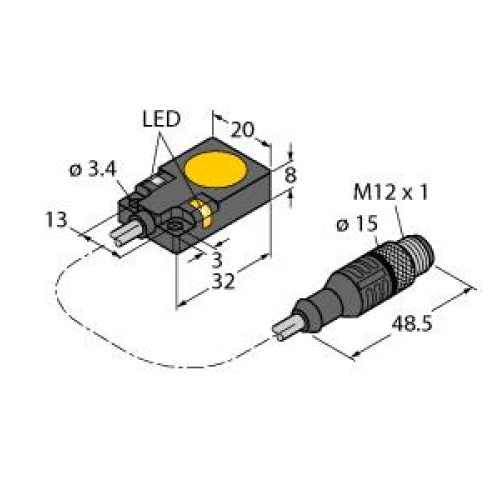

Technical Specification

Degree of protection (IP rating) -
IP67
Depth -
32 Millimetre
Frequency -
13.56 Megahertz
Height -
8 Millimetre
Max. transmission range -
30 Millimetre
Radio protocol -
ISO 15693
Type of electric connection -
Plug-in connection
Type of voltage (input voltage) -
DC
Width -
20 Millimetre
