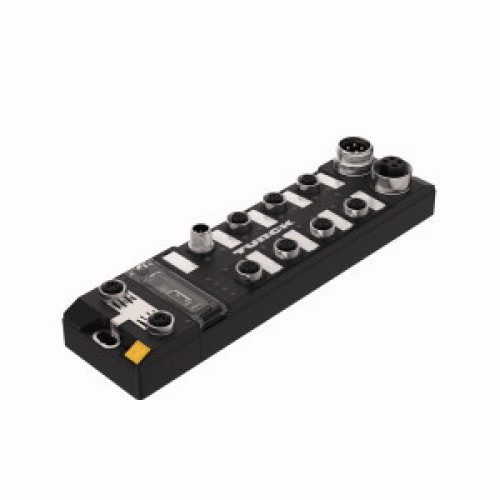

Compact PLC in IP67, CODESYS V3

Manufacturer's No: TBEN-L4-PLC-10     Manufacturer: Turck Banner
Compact PLC in IP67, CODESYS V3

Availability On Request

£941.36
  • Compact PLC with IP67 protection
  • Supports CODESYS V3 programming
  • Features CODESYS V3 PLC Runtime
  • Includes CODESYS OPC UA server/client
  • Acts as an IoT gateway for Turck Cloud
  • Supports PROFINET Controller/Device
  • Functions as an EtherNet/IP Scanner/Device
  • Capable of Modbus TCP Master/Slave and Modbus RTU Master/Slave
  • Supports CANopen Manager/Device and SAE J1939 manager
  • Equipped with Serial RS232/RS485 interfaces

Read more

  • Ethernet connectivity with 2 × M12, 4-pin, D-coded ports
  • Operates in Switched or Dual-MAC-Mode at 10 Mbps/100 Mbps
  • Housed in a glass fiber reinforced casing
  • Tested for shock and vibration resistance
  • Electronics fully potted for protection
  • Offers IP65, IP67, IP69K, ATEX Zone 2/22 protection classes
  • Includes eight universal digital I/O channels
  • Supports sensor supply up to 2 A per port
  • Provides input diagnostics per port
  • Capable of outputting up to 2 A per channel
  • Offers output diagnostics per channel


Product

Manufacturer Material ID -
TBEN-L4-PLC-10
Net Weight -
0.65kg

Additional Product Information

Commodity Code -
85371091200
Country of Origin -
DE
UNSPSC -
39121402

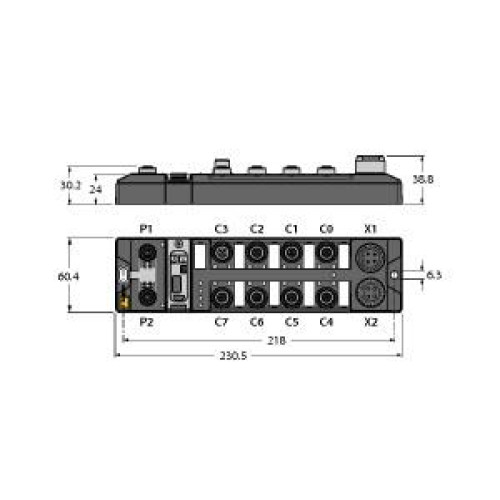

Technical Specification

Depth -
230.4 Millimetre
Height -
39 Millimetre
Width -
60.4 Millimetre
Turck Banner

Availability On Request

£941.36
