6814025

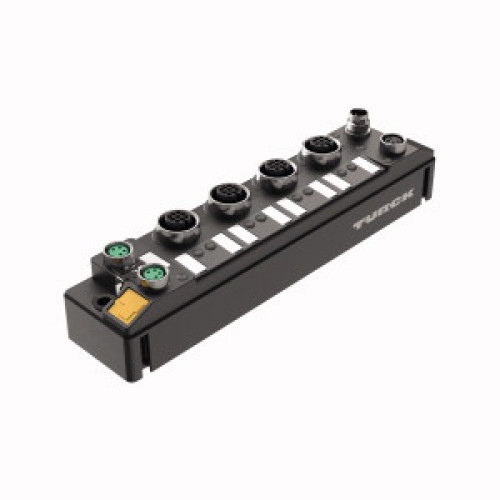

Compact Multiprotocol I/O Module for Ethernet, 4 Analog Inputs, Configurable as

Manufacturer's No: TBEN-S2-4AI     Manufacturer: Turck Banner
Compact Multiprotocol I/O Module for Ethernet, 4 Analog Inputs, Configurable as

Availability On Request

POA
  • Compact Multiprotocol I/O Module for Ethernet
  • 4 Analog Inputs configurable as Voltage, Current, RTD, or Thermocouple
  • Supports PROFINET, EtherNet/IP, and Modbus TCP protocols
  • Integrated Ethernet switch supporting 10 Mbps / 100 Mbps
  • Glass fiber reinforced housing with shock and vibration testing
  • Fully potted module electronics with IP65, IP67, IP69K protection classes
  • 2x M8, 4-pin Ethernet fieldbus connection
  • 4-pin M8 male connector for power supply
  • ATEX Zone 2/22 certified
  • Measuring ranges:
    • Voltage: ±500 mV, ±100 mV, ±50 mV, ±1 V, 0/1–5 V, ±10 V, 0/2–10 V
    • Current: 0/4–20 mA, ±20 mA
    • RTD: PT100, NI100, PT200, PT500, PT1000, NI1000
    • Resistance: 0–100 ?, 400 ?, 2 k?, 4 k?
    • Thermocouples: Type B, C, E, G, J, K, N, R, S, T

Read more

  • Inputs can be configured as differential or common reference
  • Programmable using ARGEE platform


Product

Manufacturer Material ID -
TBEN-S2-4AI
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85176200000
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Degree of protection (IP rating) -
IP65

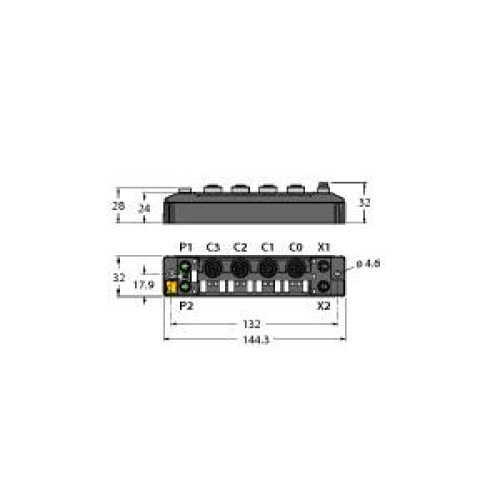

Depth -
32 Millimetre
Height -
32 Millimetre
Width -
144 Millimetre
