2CPX010322R9999

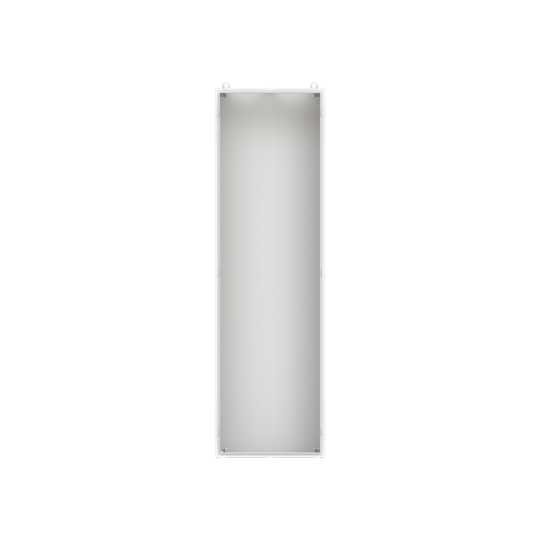

TL212GB Floor-standing cabinet, Rows: 12, 1850 mm x 550 mm x 275 mm, Grounded (Class I), IP30

Manufacturer's No: TL212GB     Manufacturer: ABB
TL212GB Floor-standing cabinet, Rows: 12, 1850 mm x 550 mm x 275 mm, Grounded (Class I), IP30

Availability On Request

POA
  • Floor-standing cabinet from TwinLine series
  • Dimensions: 1850 mm x 550 mm x 275 mm
  • Grounded (Class I) with protection class IP30
  • Expansion options: Lateral and bottom
  • Internal use, without door
  • Impact strength: IK08
  • Powder-coated in RAL 7035
  • Material: Sheet steel enclosure and rear wall
  • Cable entry on top, bottom, and side via flange openings
  • Grid unit: 12 GU, Overall height: 8

Read more

  • Panel width: 2, Space units: 288
  • Pre-assembled for metering modules and mounting plates
  • Compliant with standards: EN 61439-1, EN 61439-2, EN 61439-3


Product

Manufacturer Material ID -
TL212GB
Net Weight -
25.84kg

Additional Product Information

Commodity Code -
85381000
Country of Origin -
DE
UNSPSC -
31261502

Technical Specification

Nominal current (In) -
- Ampere
Degree of protection (NEMA) -
UN
RAL-number -
7035
Built-in depth -
222.5 Millimetre
Type of cover -
None
Material housing -
Steel plate/plastic
Impact strength -
IK08
Degree of protection (IP) -
IP30
Plate thickness door/cover -
1.5 Millimetre
Circuit integrity -
None
Colour -
Grey
Cover model -
With notch
Degree of protection (IP rating) -
IP30
Depth -
275 Millimetre
Extension possible -
Height -
1850 Millimetre
Housing material -
Steel plate/plastic
Impact resistance (IK rating) -
IK08
Internal depth -
272 Millimetre
Mounting method -
Surface mounted
Number of conduit inlets -
104
Number of modules -
288
Number of openings for flange plates -
2
Number of rows -
12
Plate thickness cabinet -
1 Millimetre
Protection class -
I
RAL number -
7035
Recess depth -
222.5 Millimetre
Surface protection -
Powder coated
Type of covering -
None
Type of door -
None
Width -
550 Millimetre
Width in number of modular spacings -
24
ABB

Availability On Request

POA
