2CSM228735R0802

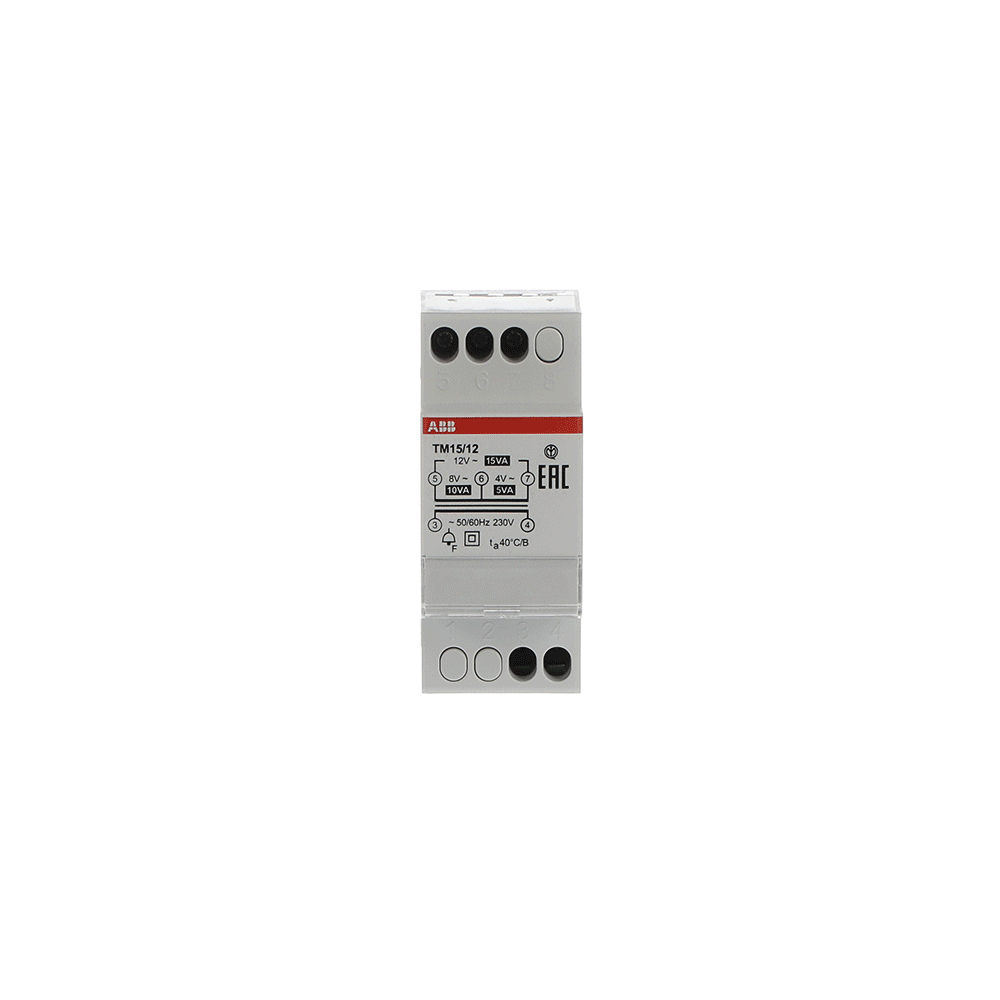

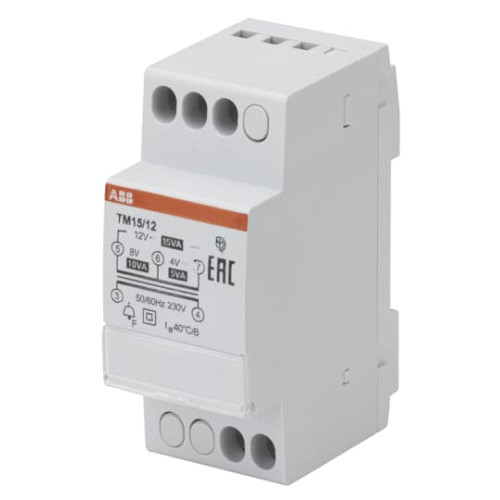

TM15/12 Fail safe bell transformer

Manufacturer's No: TM1512     Manufacturer: ABB

Availability Back Order

£42.28
  • Model: TM15/12 Fail safe bell transformer
  • Safety: Extremely-low voltage secondary (SELV)
  • Suitable for driving loads requiring a discontinuous supply


Product

Manufacturer Material ID -
TM1512
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85043121
Country of Origin -
RO
UNSPSC -
39122330

Technical Specification

Type of transformer -
Standard bell ringing transformer
Max. output current -
3.75 Ampere
Secondary voltage 1 -
4 Volt
Secondary voltage 2 -
8 Volt
Secondary voltage 3 -
12 Volt
Secondary amperage 1 -
3.75 Ampere
Secondary amperage 2 -
1.87 Ampere
Secondary amperage 3 -
1.25 Ampere
Max. power loss -
4 Watt
Height -
85 Millimetre
Length -
65 Millimetre
Max. output power -
15 Watt
Maximum output current -
3.75 Ampere
Modular version -
Primary voltage -
230 Volt
Short-circuit protected -
Width -
35 Millimetre
Width in number of modular spacings -
2
ABB

Availability Back Order

£42.28
