3042057

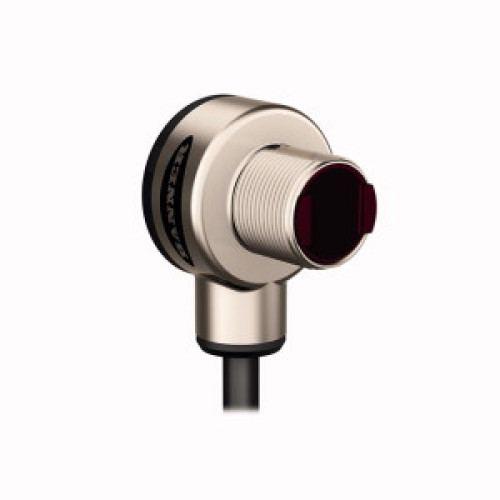

EZ BEAM TM18: Receiver, Range: 20 m, Input: 10-30 V dc, Outputs: PNP Complementary, 150 (6 in) M12 Pigtail QD

Manufacturer's No: TM18VP6RQ5     Manufacturer: Turck Banner
EZ BEAM TM18: Receiver, Range: 20 m, Input: 10-30 V dc, Outputs: PNP Complementary, 150 (6 in) M12 Pigtail QD

Availability On Request

£103.44
  • Type: Photoelectric Sensor, Opposed Mode (Receiver)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 20000 mm
  • Cable Length: 0.15 m, M12 × 1, 4-pin, PUR, 150 mm
  • Protection Class: IP67
  • Ambient Temperature: -40 °C to +70 °C
  • Housing: Metal
  • Output: PNP switching output
  • Operation: Light and dark operation


Product

Manufacturer Material ID -
TM18VP6RQ5
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
41 Millimetre
Housing material -
Metal
Length of sensor -
30 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Reaction time -
1.5 Millisecond
Setting procedure -
Other
Switching frequency -
440 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width sensor -
30 Millimetre
Turck Banner

Availability On Request

£103.44
