7030204

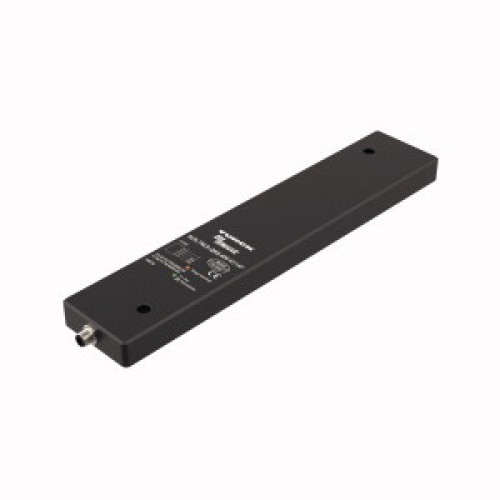

HF Read/Write Head

Manufacturer's No: TNLR-Q80L400-H1147     Manufacturer: Turck Banner
HF Read/Write Head

Availability On Request

£987.36
  • HF Read/Write Head
  • Operating voltage: 19.2-28.8 VDC
  • Type: Non-flush
  • Suitable for roller conveyors

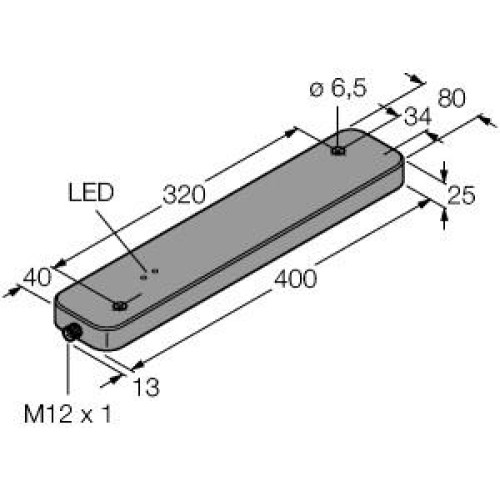

  • Dimensions: 80 x 400 mm, height 25 mm
  • Active face on top
  • Material: Plastic (PBT-GF30-V0)
  • Powered and operated via connection to BL ident interface module
  • Connector: M12 x 1
  • Connection only via BL ident extension cable


Product

Manufacturer Material ID -
TNLR-Q80L400-H1147
Net Weight -
1.22kg

Additional Product Information

Commodity Code -
84719000000
Country of Origin -
DE
UNSPSC -
39121402

Technical Specification

Degree of protection (IP rating) -
IP67
Depth -
400 Millimetre
Frequency -
13.56 Megahertz
Height -
25 Millimetre
Housing material -
Plastic
Max. transmission range -
345 Millimetre
Radio protocol -
ISO 15693
Type of voltage (input voltage) -
DC
Width -
80 Millimetre
Turck Banner

Availability On Request

£987.36
