2CSM228695R0812

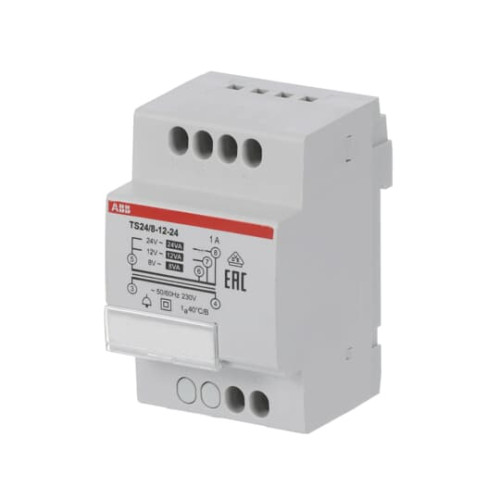

TS24/8-12-24 Non-inherently short-circuit proof bell transformer

Manufacturer's No: TS24/8-12-24     Manufacturer: ABB
TS24/8-12-24 Non-inherently short-circuit proof bell transformer

Availability On Request

£102.54
  • Model: TS24/8-12-24
  • Transformer Type: Non-inherently short-circuit proof bell transformer
  • Secondary Voltage: Very low safety voltage
  • Available Series:
    • TS8 (non-inherently short-circuit proof)
    • TS8/SW (non-inherently short-circuit proof with switch)
    • TS16/TS24 (non-inherently short-circuit proof)


Product

Manufacturer Material ID -
TS24/8-12-24
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
85043121
Country of Origin -
RO
UNSPSC -
39122330

Technical Specification

Type of transformer -
Standard bell ringing transformer
Max. output current -
3 Ampere
Secondary voltage 1 -
8 Volt
Secondary voltage 2 -
12 Volt
Secondary voltage 3 -
24 Volt
Secondary amperage 1 -
3 Ampere
Secondary amperage 2 -
2 Ampere
Secondary amperage 3 -
1 Ampere
Max. power loss -
4 Watt
Height -
85 Millimetre
Length -
65 Millimetre
Max. output power -
24 Watt
Maximum output current -
3 Ampere
Modular version -
Primary voltage -
230 Volt
Short-circuit protected -
Temperature protection -
Width -
52.5 Millimetre
Width in number of modular spacings -
3
