2CSM081012R0811

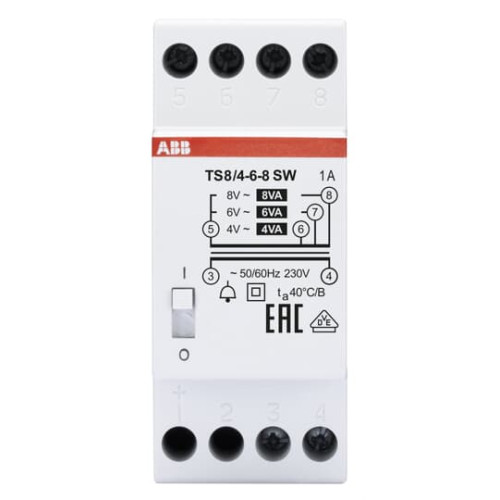

TS 8/4-6-8SW Non-inherently short-circuit proof bell transformer

Manufacturer's No: TS8/4-6-8SW     Manufacturer: ABB
TS 8/4-6-8SW Non-inherently short-circuit proof bell transformer

Availability On Request

£96.97
  • TS 8/4-6-8SW bell transformer
  • Non-inherently short-circuit proof
  • Safety extremely-low voltage secondary (SELV)
  • Suitable for discontinuous supply loads
  • Switch 0-1


Product

Manufacturer Material ID -
TS8/4-6-8SW
Net Weight -
0.35kg

Additional Product Information

Commodity Code -
85043121
Country of Origin -
RO
UNSPSC -
39122330

Technical Specification

Type of transformer -
Standard bell ringing transformer
Max. output current -
2 Ampere
Secondary voltage 1 -
4 Volt
Secondary voltage 2 -
6 Volt
Secondary voltage 3 -
8 Volt
Secondary amperage 1 -
2 Ampere
Secondary amperage 2 -
1.33 Ampere
Secondary amperage 3 -
1 Ampere
Max. power loss -
4 Watt
Height -
85 Millimetre
Length -
65 Millimetre
Max. output power -
8 Watt
Maximum output current -
2 Ampere
Modular version -
Primary voltage -
230 Volt
Short-circuit protected -
Temperature protection -
Width -
35 Millimetre
Width in number of modular spacings -
2
With on/off switch -
ABB

Availability On Request

£96.97
