7TCA091720R0157

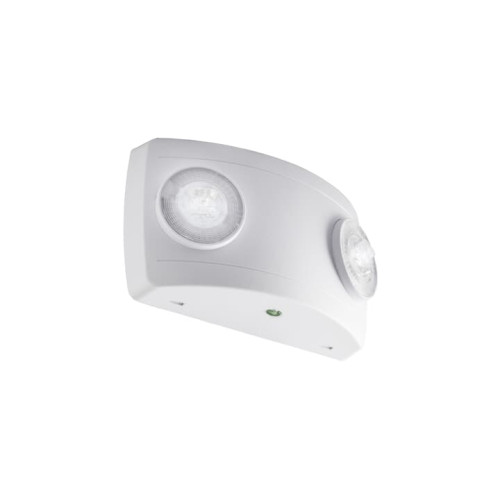

PRIMEVO ESC ROUTE TWINSPOT 220

Manufacturer's No: TW220E     Manufacturer: ABB
PRIMEVO ESC ROUTE TWINSPOT 220

Availability Back Order

£71.69
  • Model: PRIMEVO ESC ROUTE TWINSPOT 220
  • Type: PrimEvo Twinspot
  • Input Voltage: 220-240 Vac, 50Hz
  • Power Consumption: 2W
  • Light Output: 220 Lumens
  • Operating Temperature: 0-40°C


Product

Manufacturer Material ID -
TW220E
Net Weight -
0.59kg

Additional Product Information

Commodity Code -
9405614000
Country of Origin -
CN
UNSPSC -
39122330

Technical Specification

Battery chemistry -
NiMH
Colour temperature -
6000 Kelvin
Control gear -
LED driver constant current
Cover material -
Plastic matt/satinised
Degree of protection (IP rating) -
IP20
Function -
Escape route lighting
Height/depth -
53 Millimetre
Housing colour -
White
Housing material -
Plastic
Impact resistance (IK rating) -
IK10
Length -
186 Millimetre
Light distribution -
Diffuser
Light source included -
Light source type -
LED non-replaceable
Luminous flux in standby mode -
220 Lumen
Maximum system power -
6.5 Watt
Mounting method -
Wall surface mounted
Nominal operation time -
3 Hour
Nominal voltage -
220 Volt
Number of lighting heads -
1
Power factor -
0.42
Power supply system -
Peripheral (individual battery)
Protection class -
II
Rated ambient temperature acc. IEC62722-2-1 -
0 Degrees celsius
Type of cabling -
Ending
Voltage type -
AC
Width -
108 Millimetre
With remote switch connection -
ABB

Availability Back Order

£71.69
